SST25VF016B-50-4I-S2AF 16 Mbit SPI Serial Flash electronic component

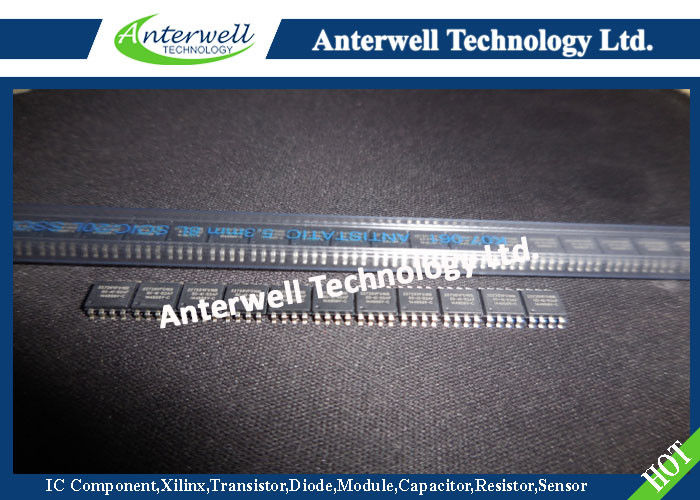

: Large Image : SST25VF016B-50-4I-S2AF 16 Mbit SPI Serial Flash electronic component

Product Details:

Place of Origin:	Original
Brand Name:	SST
Certification:	Original
Model Number:	SST25VF016B-50-4I-S2AF

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Price:	0.1USD
Packaging Details:	contact us for more details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000PCS/DAY

Contact Now

Detailed Product Description

Features:	Single Voltage Read And Write Operations	Voltage:	2.7-3.6V
CURRENT:	1.0Ampere	Commercial:	0°C To +70°C
Industrial:	-40°C To +85°C	Type:	SPI
Highlight:	circuit board ic , electronic components ic

SST25VF016B-50-4I-S2AF 16 Mbit SPI Serial Flash

FEATURES:

• Single Voltage Read and Write Operations

– 2.7-3.6V

• Serial Interface Architecture

– SPI Compatible: Mode 0 and Mode 3

• High Speed Clock Frequency

– Up to 80 MHz

• Superior Reliability

– Endurance: 100,000 Cycles (typical)

– Greater than 100 years Data Retention

• Low Power Consumption:

– Active Read Current: 10 mA (typical)

– Standby Current: 5 µA (typical)

• Flexible Erase Capability

– Uniform 4 KByte sectors

– Uniform 32 KByte overlay blocks

– Uniform 64 KByte overlay blocks

• Fast Erase and Byte-Program:

– Chip-Erase Time: 35 ms (typical)

– Sector-/Block-Erase Time: 18 ms (typical)

– Byte-Program Time: 7 µs (typical)

• Auto Address Increment (AAI) Programming

– Decrease total chip programming time over

Byte-Program operations

• End-of-Write Detection

– Software polling the BUSY bit in Status Register SST25VF016B-50-4I-S2AF 16 Mbit SPI Serial Flash electronic component

– Busy Status readout on SO pin in AAI Mode

• Hold Pin (HOLD#)

– Suspends a serial sequence to the memory

without deselecting the device

• Write Protection (WP#)

– Enables/Disables the Lock-Down function of the

status register

• Software Write Protection

– Write protection through Block-Protection bits in

status register

• Temperature Range

– Commercial: 0°C to +70°C

– Industrial: -40°C to +85°C

• Packages Available

– 8-lead SOIC (200 mils)

– 8-contact WSON (6mm x 5mm)

• All non-Pb (lead-free) devices are RoHS compliant

Protection Level	BP3	BP2	BP1	BP0	16Mbit
Upper 1/32	x	0	0	1	1F0000H-1FFFFFH
Upper 1/16	x	0	1	0	1F0000H-1FFFFFH
Upper 1/8	x	0	1	1	1F0000H-1FFFFFH
