Product Details:
Payment & Shipping Terms:
|
| Storage Temperature Range: | –60 To +150 °C | Operating Temperature Range: | –40 To +105 °C |
|---|---|---|---|
| Maximum Junction Temperature: | +150 °C | Digital Input Voltage To DGND: | –0.3 To DVDD + 0.3 V |
| Input Current: | 10 MA | AVDD To AVSS: | –0.3 To +5.5 V |
| Highlight: | electronics ic chip,integrated circuit components |
||

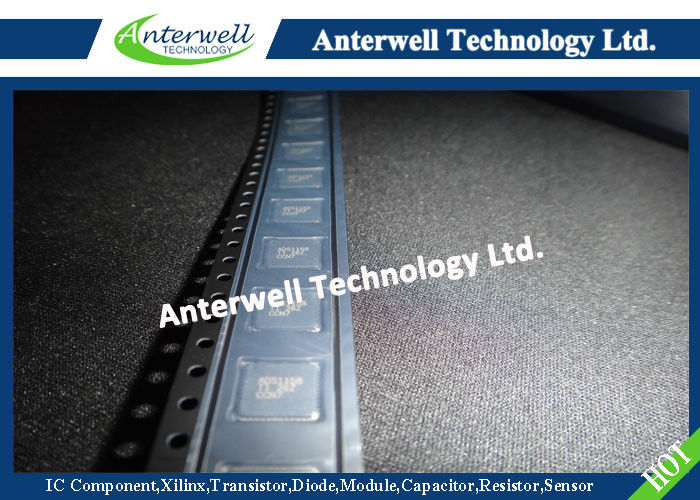

16-Channel, 16-Bit Analog-to-Digital Converter
FEATURES
APPLICATIONS
DESCRIPTION
The ADS1158 is a 16-channel (multiplexed), low-noise, 16-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) that provides single-cycle settled data at channel scan rates from 1.8k to 23.7k samples per second (SPS) per channel. A flexible input multiplexer accepts combinations of eight differential or 16 single-ended inputs with a full-scale differential range of 5V or true bipolar range of ±2.5V when operating with a 5V reference. The fourth-order delta-sigma modulator is followed by a fifth-order sinc digital filter optimized for low-noise performance.
The differential output of the multiplexer is accessible to allow signal conditioning before the input of the ADC. Internal system monitor registers provide supply voltage, temperature, reference voltage, gain, and offset data.
An onboard PLL generates the system clock from a 32.768kHz crystal, or can be overridden by an external clock source. A buffered system clock output (15.7MHz) is provided to drive a microcontroller or additional converters.
Serial digital communication is handled via an SPI™-compatible interface. A simple command word structure controls channel configuration, data rates, digital I/O, monitor functions, etc.
Programmable sensor bias current sources can be used to bias sensors or verify sensor integrity.
The ADS1158 operates from a unipolar +5V or bipolar ±2.5V analog supply and a digital supply compatible with interfaces ranging from 2.7V to 5.25V. The ADS1158 is available in a QFN-48 package.
ABSOLUTE MAXIMUM RATINGS
Over operating free-air temperature range, unless otherwise noted. (1)
| ADS1158 | UNIT | |
| AVDD to AVSS | –0.3 to +5.5 | V |
| AVSS to DGND | –2.8 to +0.3 | V |
| DVDD to DGND | –0.3 to +5.5 | V |
| Input current | 100, momentary | mA |
| Input current | 10, continuous | mA |
| Analog input voltage | AVSS – 0.3 to AVDD + 0.3 | V |
| Digital input voltage to DGND | –0.3 to DVDD + 0.3 | V |
| Maximum junction temperature | +150 | °C |
| Operating temperature range | –40 to +105 | °C |
| Storage temperature range | –60 to +150 | °C |
(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.
