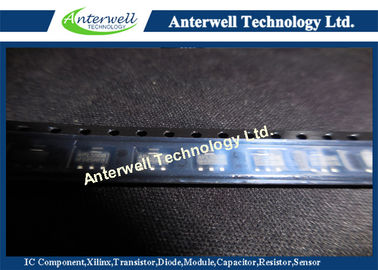

APL5508-18DC-TRL Circuit Board Low IQ , Low Dropout 560mA Fixed Voltage Regulator Ic Chip

Features

• Low Quiescent Current : 60µA (No load)

• Low Dropout Voltage : 600mV (@560mA)

• Very low Shutdown Current : < 0.5uA

• Fixed Output Voltage : 1.5V ~ 4.5V by step 0.1V increment

• Stable with 1uF Output Capacitor

• Stable with Aluminum, Tantalum or Ceramic Capacitors .

• No Protection Diodes Needed

• Built in Thermal Protection

• Built in Current Limit Protection

• Controlled Short Circuit Current : 50mA

• Fast Transient Response

• Short Setting Time

• SOT-23, SOT-89 and SOT-223 Packages

General Description

The APL5508/9/R series are micropower, low dropout linear regulators, which operate from 2.7V to 6V input voltage and deliver up to 560mA. Typical dropout voltage is only 600mV at 560mA loading.

Designed for use in battery-powered system, the low 60µA quiescent current makes it an ideal choice.

Design with an internal P-channel MOSFET pass transistor, the APL5508/9/R maintain a low supply current, independent of the load current and dropout voltage.

Other features include thermal-shutdown protection, current limit protection to ensure specified output current and controlled short-circuit current.

The APL5508/9/R regulators come in a miniature SOT- 23, SOT-89 and SOT-223 packages

Applications

• 5V to 3.3~4.3V Linear Regulators

• 3.3V to 1.5~2.5V Linear Regulators

• CD-R/W, DVD Player

• LAN Card, ADSL/Cable Modem

• Computers
