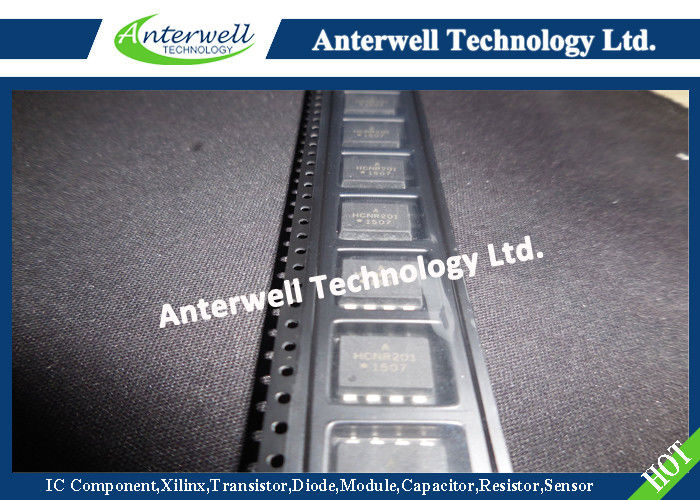

HCNR201 Integrated Circuit Chip High-Linearity Analog Optocouplers

Description

The HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illuminates two closely matched photodiodes. The input photodiode can be used to monitor, and therefore stabilize, the light output of the LED. As a result, the non-linearity and drift characteristics of the LED can be virtually eliminated. The output photodiode produces a photocur rent that is linearly related to the light output of the LED. The close matching of the photo-diodes and advanced design of the package ensure the high linearity and stable gain characteristics of the opto coupler.

The HCNR200/201 can be used to isolate analog signals in a wide variety of applications that require good stability, linearity, bandwidth and low cost. The HCNR200/201 is very fl exible and, by appro priate design of the application circuit, is capable of operating in many diff erent modes, includ ing: unipolar/bipolar, ac/dc and inverting/ non-inverting. The HCNR200/201 is an excellent solution for many analog isola tion problems.

Features

 Low nonlinearity: 0.01%

 K3 (IPD2/IPD1) transfer gain HCNR200: ±15% HCNR201: ±5%

 Low gain temperature coeffi cient: -65 ppm/°C

 Wide bandwidth – DC to >1 MHz

 Worldwide safety approval

– UL 1577 recognized (5 kV rms/1 min rating)

– CSA approved

– IEC/EN/DIN EN 60747-5-2 approved VIORM = 1414 V peak (option #050)

 Surface mount option available (Option #300)

 8-Pin DIP package - 0.400” spacing

 Allows fl exible circuit design

Package Outline Drawings

Absolute Maximum Ratings

Storage Temperature ..............................................................................................-55°C to +125°C Operating Temperature (TA) ................................................................................. -55°C to +100°C Junction Temperature (TJ ) ......................................................................................................... 125°C Refl ow Temperature Profi le ..............................................See Package Outline Drawings Section Lead Solder Temperature ............................................................................................260°C for 10s

(up to seating plane)

Average Input Current - IF ........................................................................................................ 25 mA Peak Input Current - IF ............................................................................................................... 40 mA

(50 ns maximum pulse width)

Reverse Input Voltage - VR ............................................................................................................2.5 V

(IR = 100 μA, Pin 1-2)

Input Power Dissipation .................................................................................... 60 mW @ TA = 85°C

(Derate at 2.2 mW/°C for operating temperatures above 85°C)

Reverse Output Photodiode Voltage ........................................................................................30 V

(Pin 6-5) Reverse Input Photodiode Voltage ............................................30 V

(Pin 3-4)
