ADC78H89CIMT 7-Channel 500 Circuit Board Chips KSPS 12-Bit A/D Converter

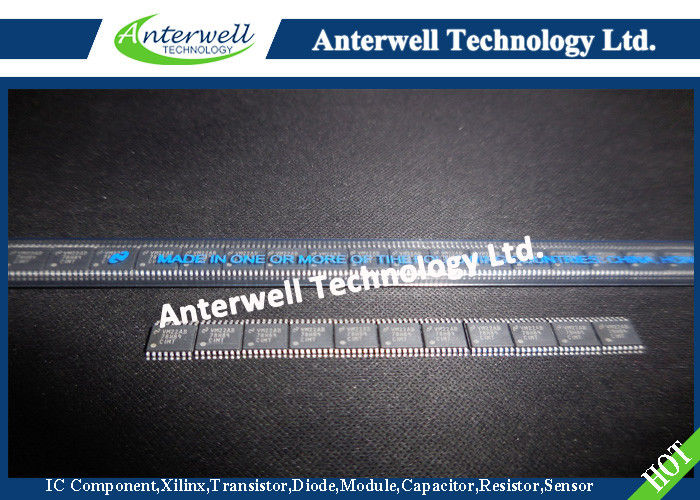

: Large Image : ADC78H89CIMT 7-Channel 500 Circuit Board Chips KSPS 12-Bit A/D Converter

Product Details:

Place of Origin:	Original
Brand Name:	NSC
Certification:	Original
Model Number:	ADC78H89CIMT

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Price:	0.1USD
Packaging Details:	contact us for more details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000PCS/DAY

Contact Now

Detailed Product Description

Description:	Analog-to-digital Converter	Key Specifications:	Conversion Rate
FEATURES:	Seven Input Channels	Type:	IC
Applications:	Automotive Navigation	Temperature Range:	−40˚C To +85˚C
Highlight:	circuit board ic , electronic components ic

ADC78H89CIMT 7-Channel 12-Bit A/D Converter

General Description

The ADC78H89 is a low-power, seven-channel CMOS 12-bit analog-to-digital converter with a conversion throughput of 500 KSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to seven input signals on pins AIN1 through AIN7.

The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROW-IRE™, and many common DSP serial interfaces.The ADC78H89 may be operated with independent analog and digital supplies. The analog supply (AVDD) can range from +2.7V to +5.25V, and the digital supply (DVDD) can range from +2.7V to AVDD. Normal power consumption using a +3V or +5V supply is 1.5 mW and 8.3 mW, respectively.

The power-down feature reduces the power consumption tojust 0.3 µW using a +3V supply, or 0.5 µW using a +5V supply. The ADC78H89 is packaged in a 16-lead TSSOP package. Operation over the industrial temperature range of −40˚C to +85˚C is guaranteed.

Features

1.Seven input channels 2.Variable power management 3.Independent analog and digital supplies 4.SPI™/QSPI™/MICROWIRE™/DSP compatible

5.Packaged in 16-lead TSSOP 6.Key Specifications 7.Conversion Rate 8.DNL 9.INL 10.Power Consumption — 3V Supply / 5V Supply

Applications

1.Automotive Navigation 2.Portable Systems 3.Medical Instruments 4.Mobile Communications 5.Instrumentation and Control Systems

Order Code	Temperature Range	Description
ADC78H89CIMT	−40˚C to +85˚C	16-Lead TSSOP Package
ADC78H89CIMTX	−40˚C to +85˚C	16-Lead TSSOP Package, Tape & Reel
ADC78H89EVAL	/	Evaluation Board
