Product Details:
Payment & Shipping Terms:
|
| Reinforced Isolation Voltage: | -0.5V To +4.0V | Temperature: | -55°C To + 125°C |
|---|---|---|---|
| Output Current: | 200mA | Main Line:: | Ic,module,transistor,diodes,capacitor,resistor Etc |
| Package: | TSOP-48 | Factory Pack: | TRAY |
| Highlight: | programming ic chips,ic programmer circuit |
||

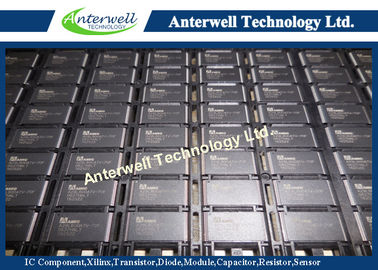

A29L800ATV -70F programmable circuit board , Boot Sector Flash Memory Electronics IC Chip
A29L800ATV-70F Programmable IC Chips Boot Sector Flash
Revision History Rev. History Issue Date Remark 0.0 Initial issue September 27, 2004 Preliminary 1.0 Change voltage range from 2.7V~3.6V to 3.0V~3.6V January 10, 2005 Final Final version release 1.1 Change voltage range from 3.0V~3.6V back to 2.7V~3.6V June 24, 2005 Add –70U series products
Features
Single power supply operation
- Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications
Access times: - 70/90 (max.)
Current:
- 9 mA typical active read current
- 20 mA typical program/erase current
- 200 nA typical CMOS standby
- 200 nA Automatic Sleep Mode current
Flexible sector architecture
- 16 Kbyte/ 8 KbyteX2/ 32 Kbyte/ 64 KbyteX15 sectors
- 8 Kword/ 4 KwordX2/ 16 Kword/ 32 KwordX15 sectors
- Any combination of sectors can be erased
- Supports full chip erase
- Sector protection: A hardware method of protecting sectors to prevent any inadvertent program or erase operations within that sector
Extended operating temperature range: -40°C ~ +85°C for - U series; -25°C ~ +85°C for
– I series Unlock Bypass Program Command
- Reduces overall programming time when issuing multiple program command sequence Top or bottom boot block configurations available Embedded Algorithms
- Embedded Erase algorithm will automatically erase the entire chip or any combination of designated sectors and verify the erased sectors
Absolute Maximum Ratings* Storage Temperature
Plastic Packages. . . . . .-65°C to + 150°C
Ambient Temperature with Power Applied . . . -55°C to + 125°C
Voltage with Respect to Ground VCC (Note 1) .. . . . . . -0.5V to +4.0V
A9, OE & RESET (Note 2) . . . . . . . . . . . . . . . . -0.5 to +12.5V
All other pins (Note 1) . . . . . . . . . .. . . .. . . -0.5V to VCC + 0.5V
Output Short Circuit Current (Note 3) . . . . . . . . . . . . . 200mA
