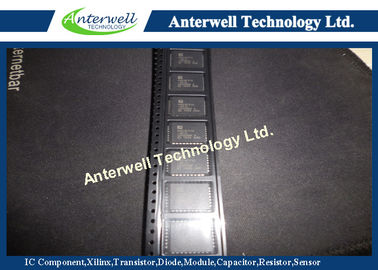

AM29F010-90JC Programmable IC Chips Uniform Sector Flash Memory Original IC Electronics Chip

Am29F010

1 Megabit (128 K x 8-bit) CMOS 5.0 Volt-only

Uniform Sector Flash Memory

DISTINCTIVE CHARACTERISTICS

■ Single power supply operation

— 5.0 V ± 10% for read, erase, and program operations

— Simplifies system-level power requirements

■ High performance

— 45 ns maximum access time

■ Low power consumption

— 30 mA max active read current

— 50 mA max program/erase current

— <25 µA typical standby current

■ Flexible sector architecture

— Eight uniform sectors

— Any combination of sectors can be erased

— Supports full chip erase

■ Sector protection

— Hardware-based feature that disables/reenables program and erase operations in any combination of sectors

— Sector protection/unprotection can be implemented using standard PROM programming equipment

■ Embedded Algorithms

— Embedded Erase algorithm automatically pre-programs and erases the chip or any combination of designated sector

— Embedded Program algorithm automatically programs and verifies data at specified address

■ Minimum 100,000 program/erase cycles guaranteed

■ Package options — 32-pin PLCC — 32-pin TSOP — 32-pin PDIP

■ Compatible with JEDEC standards

— Pinout and software compatible with single-power-supply flash

— Superior inadvertent write protection

■ Data# Polling and Toggle Bits

— Provides a software method of detecting program or erase cycle completion

PRODUCT SELECTOR GUIDE

ABSOLUTE MAXIMUM RATINGS Storage

Temperature Plastic Packages . . . . . . . . . . . . . . . –65°C to +125°C

Ambient Temperature with Power Applied . . . . . . . . . . . . . –55°C to +125°C

Voltage with Respect to Ground VCC (Note 1). . . . . . .  . .–2.0 V to +7.0 V

A9 (Note 2). . . . . . . . . . . . . . . . . . . .–2.0 V to +12.5 V

All other pins (Note 1) . . . . . . . . . . . .–2.0 V to +7.0 V

Output Short Circuit Current (Note 3) . . . . . . 200 mA
