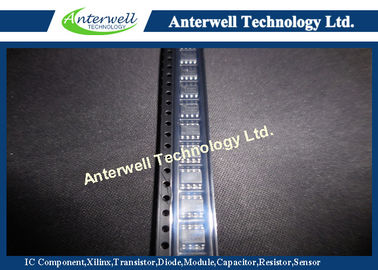

AOZ1036PI Integrated Circuit Chip SMD Original IC Electronics Chip 5A Synchronous Buck Regulator

AOZ1036PI

General Description
The AOZ1036 is a high efficiency, easy to use, 5A synchronous buck regulator. The AOZ1036 works from 4.5V to 18V input voltage range, and provides up to 5A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1036 comes in both a 5x4 DFN-8 and an exposed pad SO-8 package and is rated over a -40°C to +85°C ambient temperature range.

Features
z 4.5V to 18V operating input voltage range
z Synchronous Buck: 55mΩ internal high-side switch and 19mΩ Internal low-side switch
z High efficiency: up to 95%
z Internal soft start
z Output voltage adjustable to 0.8V
z 5A continuous output current
z Fixed 500kHz PWM operation
z Cycle-by-cycle current limit
z Pre-bias start-up
z Short-circuit protection
z Thermal shutdown
z Thermally enhanced 5x4 DFN-8 and exposed pad SO-8 packages

Applications
z Point of load DC/DC converters
z LCD TV z Set top boxes
z DVD / Blu-ray players/recorders
z Cable modems z PCIe graphics cards

Ordering Information

A part of stock list
