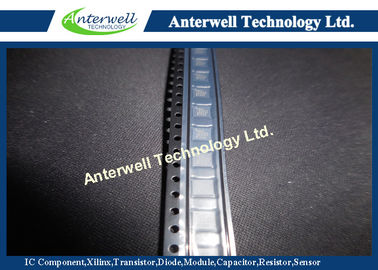

ADA4857-2YCPZ Integrated Circuit Chip SMD Original IC Electronics Low Power, Low Noise, High Speed Op Amp

Ultralow Distortion, Low Power, Low Noise, High Speed Op Amp

ADA4857-1/ADA4857-2

FEATURES

High speed

850 MHz, −3 dB bandwidth (G = +1, RL = 1 kΩ, LFSCP)

750 MHz, −3 dB bandwidth (G = +1, RL = 1 kΩ, SOIC)

2800 V/μs slew rate

Low distortion: −88 dBc @ 10 MHz (G = +1, RL = 1 kΩ)

Low power: 5 mA/amplifier @ 10 V Low noise: 4.4 nV/√Hz

Wide supply voltage range: 5 V to 10 V

Power-down feature

Available in 3 mm × 3 mm 8-lead LFCSP (single), 8-lead SOIC (single), and 4 mm × 4 mm 16-lead LFCSP (dual)

APPLICATIONS

Instrumentation IF and baseband amplifiers Active filters ADC drivers DAC buffers

GENERAL DESCRIPTION

The ADA4857 is a unity gain stable, high speed, voltage feedback amplifier with low distortion, low noise, and high slew rate. With a spurious-free dynamic range (SFDR) of −88 dBc @ 10 MHz, the ADA4857 is an ideal solution in a variety of applications including ultrasounds, ATE, active filters, and ADC drivers. The Analog Devices, Inc., proprietary next-generation XFCB process and innovative architecture enables such high performance amplifiers. The ADA4857 has 850 MHz bandwidth, 2800 V/μs slew rate, and settles to 0.1% in 15 ns. With a wide supply voltage range (5 V to 10 V), the ADA4857 is an ideal candidate for systems that require high dynamic range, precision, and speed.

The ADA4857-1 amplifier is available in a 3 mm × 3 mm, 8-lead LFCSP and a standard 8-lead SOIC. The ADA4857-2 is available in a 4 mm × 4 mm, 16-lead LFSCP. The LFCSP features an exposed paddle that provides a low thermal resistance path to the PCB. This path enables more efficient heat transfer and increases reliability. The ADA4857 works over the extended industrial temperature range (−40°C to +125°C).
