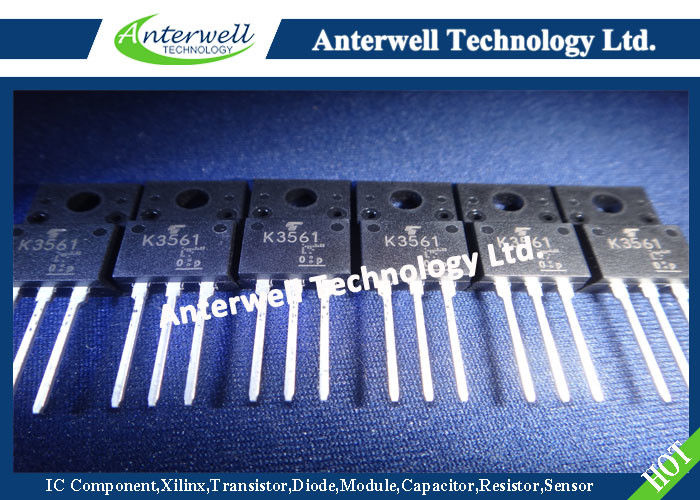

N Channel Power Mosfet Transistor , 2SK3561 MOS Field Effect Transistor



N Channel Power Mosfet Transistor , 2SK3561 MOS Field Effect Transistor


TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSVI)

2SK3561

Switching Regulator Applications

• Low drain-source ON resistance: RDS (ON) = 0.75Ω (typ.)
• High forward transfer admittance: |Yfs| = 6.5S (typ.)
• Low leakage current: IDSS = 100 μA (VDS = 500 V)
• Enhancement mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA)

Absolute Maximum Ratings (Ta = 25°C)

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).

Thermal Characteristics

Note 1: Ensure that the channel temperature does not exceed 150℃.
Note 2: VDD = 90 V, Tch = 25°C(initial), L = 8.3 mH, IAR = 8 A, RG = 25 Ω
Note 3: Repetitive rating: pulse width limited by maximum channel temperature
This transistor is an electrostatic-sensitive device. Please handle with caution.


                                                            Weight : 1.7 g (typ.)
