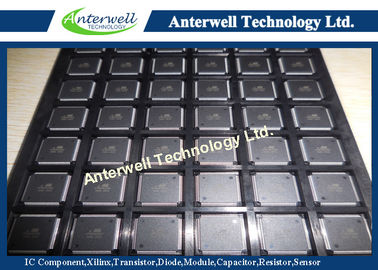

ATMEGA2560-16AU IC Chip 8 bit Microcontroller 64K 128K 256K Bytes In System Programmable Flash

ATMEGA2560-16AU IC Chip 8 bit Microcontroller 64K 128K 256K Bytes In System Programmable Flash

ATMEGA2560-16AU

8-bit Microcontroller with 64K/128K/256K Bytes In-System Programmable Flash

Features

• High Performance, Low Power AVR® 8-Bit Microcontroller

• Advanced RISC Architecture

– 135 Powerful Instructions

– Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-Chip 2-cycle Multiplier

• Non-volatile Program and Data Memories

– 64K/128K/256K Bytes of In-System Self-Programmable Flash Endurance: 10,000 Write/Erase Cycles

– Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation

– 4K Bytes EEPROM Endurance: 100,000 Write/Erase Cycles

– 8K Bytes Internal SRAM – Up to 64K Bytes Optional External Memory Space

– Programming Lock for Software Security

• JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

• Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– Four 16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode

– Real Time Counter with Separate Oscillator

– Four 8-bit PWM Channels

– Six/Twelve PWM Channels with Programmable Resolution from 2 to 16 Bits (ATmega1281/2561, ATmega640/1280/2560)

– Output Compare Modulator – 8/16-channel, 10-bit ADC (ATmega1281/2561, ATmega640/1280/2560)

– Two/Four Programmable Serial USART (ATmega1281/2561,ATmega640/1280/2560)

– Master/Slave SPI Serial Interface – Byte Oriented 2-wire Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

• Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby

• I/O and Packages

– 54/86 Programmable I/O Lines (ATmega1281/2561, ATmega640/1280/2560)

– 64-pad QFN/MLF, 64-lead TQFP (ATmega1281/2561)

– 100-lead TQFP, 100-ball CBGA (ATmega640/1280/2560)

– RoHS/Fully Green

• Temperature Range: – -40°C to 85°C Industrial

• Ultra-Low Power Consumption

– Active Mode: 1 MHz, 1.8V: 510 µA

– Power-down Mode: 0.1 µA at 1.8V

• Speed Grade (see “Maximum speed vs. VCC” on page 377):

– ATmega640V/ATmega1280V/ATmega1281V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V

– ATmega2560V/ATmega2561V: 0 - 2 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V

– ATmega640/ATmega1280/ATmega1281: 0 - 8 MHz @ 2.7 - 5.5V, 0 - 16 MHz @ 4.5 - 5.5V

– ATmega2560/ATmega2561: 0 - 16 MHz @ 4.5 - 5.5V
