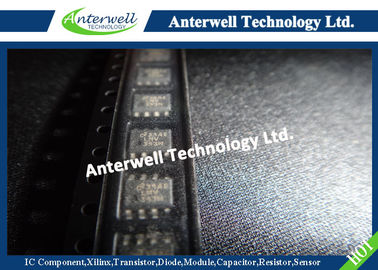

LMV393M electronic ic chip Integrated Circuit Chip General Purpose, Low Voltage, TinyPack Comparators

LMV331 Single / LMV393 Dual / LMV339 Quad

General Purpose, Low Voltage, TinyPack Comparators

General Description

The LMV393 and LMV339 are low voltage (2.7-5V) versions of the dual and quad comparators, LM393/339, which are specified at 5-30V. The LMV331 is the single version, which is available in space saving SC70-5 and SOT23-5 packages. SC70-5 is approximately half the size of SOT23-5.

The LMV393 is available in 8-pin SOIC and 8-pin MSOP. The LMV339 is available in 14-pin SOIC and 14-pin TSSOP.

The LMV331/393/339 is the most cost-effective solution where space, low voltage, low power and price are the primary specification in circuit design for portable consumer products. They offer specifications that meet or exceed the familiar LM393/339 at a fraction of the supply current.

The chips are built with National’s advanced Submicron Silicon-Gate BiCMOS process. The LMV331/393/339 have bipolar input and output stages for improved noise performance.

Features

(For 5V Supply, Typical Unless Otherwise Noted)

• Space Saving SC70-5 Package (2.0 x 2.1 x 1.0 mm)
• Space Saving SOT23-5 Package (3.00 x 3.01 x 1.43 mm)
• Guaranteed 2.7V and 5V Performance
• Industrial Temperature Range          −40˚C to +85˚C
• Low Supply Current                          60µA/Channel
• Input Common Mode Voltage Range Includes Ground
• Low Output Saturation Voltage          200 mV

Applications

• Mobile Communications
• Notebooks and PDA’s
• Battery Powered Electronics
• General Purpose Portable Device
• General Purpose Low Voltage Applications

Absolute Maximum Ratings (Note 1)

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.

ESD Tolerance (Note 2)

    Human Body Model

      LMV331/ 393/ 339                                               800V

    Machine Model

      LMV331/339/393                                                 120V

Differential Input Voltage                                           ± Supply Voltage

Voltage on any pin (referred to V− pin)                     5.5V

Soldering Information

   Infrared or Convection (20 sec)                              235˚C

Storage Temp. Range                                               −65˚C to +150˚C

Junction Temperature (Note 3)                                 150˚C

Operating Ratings(Note 1)

Supply Voltage                                                           2.7V to 5.0V

Temperature Range

   LMV393, LMV339, LMV331                                     −40˚C ≤ TJ ≤ +85˚C

Thermal Resistance (θJA)

   M Package, 8-pin Surface Mount                             190˚C/W

   M Package, 14-pin Surface Mount                           145˚C/W

   MTC Package, 14-pin TSSOP                                  155˚C/W

   MAA05 Package, 5-pin SC70-5                                 478˚C/W

   M05A Package 5 -pin SOT23-5                                 265˚C/W

   MM Package, 8-pin Mini Surface Mount                     235˚C/W

Connection Diagrams
