Product Details:
Payment & Shipping Terms:
|
| Collector–Emitter Voltage: | 1200 Vdc | Collector–Gate Voltage (RGE = 1.0 MΩ): | 1200 Vdc |
|---|---|---|---|
| Gate–Emitter Voltage — Continuous: | ± 20 Vdc | Total Power Dissipation @ TC = 25°C: | 125 Watts |
| Operating And Storage Junction Temperature Range: | –55 To 150 °C | Short Circuit Withstand Time: | 10 μs |
| Highlight: | npn smd transistor,silicon power transistors |
||

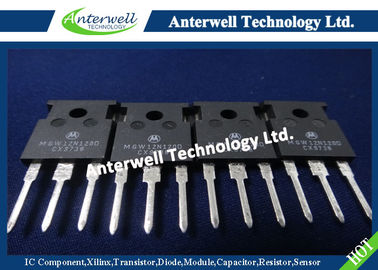

Insulated Gate Bipolar Transistor with Anti-Parallel Diode
N–Channel Enhancement–Mode Silicon Gate
IGBT & DIODE IN TO–247
12 A @ 90°C
20 A @ 25°C
1200 VOLTS
SHORT CIRCUIT RATED
This Insulated Gate Bipolar Transistor (IGBT) is co–packaged with a soft recovery ultra–fast rectifier and uses an advanced termination scheme to provide an enhanced and reliable high voltage–blocking capability. Short circuit rated IGBT’s are specifically suited for applications requiring a guaranteed short circuit withstand time such as Motor Control Drives. Fast switching characteristics result in efficient operation at high frequencies. Co–packaged IGBT’s save space, reduce assembly time and cost.
• Industry Standard High Power TO–247 Package with Isolated Mounting Hole
• High Speed Eoff: 150 J/A typical at 125°C
• High Short Circuit Capability – 10 s minimum
• Soft Recovery Free Wheeling Diode is included in the package
• Robust High Voltage Termination
• Robust RBSOA
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
| Rating | Symbol | Value | Unit |
| Collector–Emitter Voltage | VCES | 1200 | Vdc |
| Collector–Gate Voltage (RGE = 1.0 MΩ) | VCGR | 1200 | Vdc |
| Gate–Emitter Voltage — Continuous | VGE | ± 20 | Vdc |
Collector Current — Continuous @ TC = 25°C — Continuous @ TC = 90°C — Repetitive Pulsed Current (1) | IC25 IC90 ICM | 20 12 40 | Vdc
Apk |
Total Power Dissipation @ TC = 25°C Derate above 25°C | PD | 125 0.98 | Watts W/°C |
| Operating and Storage Junction Temperature Range | TJ, Tstg | –55 to 150 | °C |
Short Circuit Withstand Time (VCC = 720 Vdc, VGE = 15 Vdc, TJ = 125°C, RG = 20 Ω) | tsc | 10 | μs |
Thermal Resistance — Junction to Case – IGBT — Junction to Case – Diode — Junction to Ambient | RθJC RθJC RθJA | 1.0 1.4 45 | °C/W |
| Maximum Lead Temperature for Soldering Purposes, 1/8″ from case for 5 seconds | TL | 260 | °C |
| Mounting Torque, 6–32 or M3 screw | 10 lbf*in (1.13 N*m) | ||
(1) Pulse width is limited by maximum junction temperature. Repetitive rating.
PACKAGE DIMENSIONS
