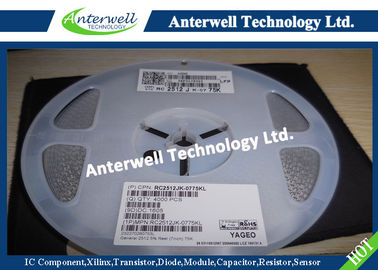

RC2512JK-0775KL RC2512 series chip resistors with fead-free terminations made by thick film process

: Large Image : RC2512JK-0775KL RC2512 series chip resistors with fead-free terminations made by thick film process

Product Details:

Place of Origin:	Original
Brand Name:	BRAND NEW
Certification:	Original Factory Pack
Model Number:	RC2512JK-0775KL

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Operating Temperature Range:	–55 °C To +155 °C	Maximum Working Voltage:	200 V
Maximum Overload Voltage:	500 V	Dielectric Withstanding Voltage:	500 V
Jumper Criteria:	2 A
Highlight:	soldering smd resistor , resistors transistors capacitors

RC2512JK-0775KL RC2512 series chip resistors with fead-free terminations made by thick film process CONSTRUCTION

The resistor is constructed on top of a high-grade ceramic body. Internal metal electrodes are added on each end to make the contacts to the thick film resistive element. The composition of the resistive element is a noble metal imbedded into a glass and covered by a second glass to prevent environment influences. The resistor is laser trimmed to the rated resistance value. The resistor is covered with a protective epoxy coat, finally the two external terminations (matte tin on Nibarrier) are added. See fig.3

FOOTPRINT AND SOLDERING PROFILES

For recommended footprint and soldering profiles, please see the special data sheet “Chip resistors mounting”.

ELECTRICAL CHARACTERISTICS

CHARACTERISTICS	CHARACTERISTICS RC0805 1/8 W
Operating Temperature Range	–55 °C to +155 °C
Maximum Working Voltage	200 V
Maximum Overload Voltage	500 V
Dielectric Withstanding Voltage	500 V

OUTLINES
