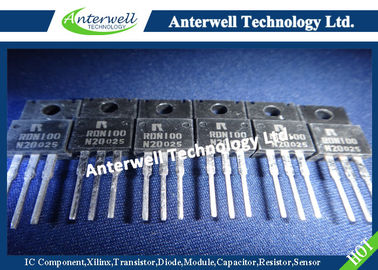

RDN100N20 Off Line Switcher IC electrical ic Power Mosfet Transistor Switching (200V, 10A)

: Large Image : RDN100N20 Off Line Switcher IC electrical ic Power Mosfet Transistor Switching (200V, 10A)

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	RDN100N20

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8600pcs

Contact Now

Detailed Product Description

Drain-Source Voltage:	200 V	Gate-Source Voltage:	±30 V
Drain Current (Continuous):	10 A	Avalanche Current:	10 A
Avalanche Energy:	120 MJ	Storage Temperature:	−55 To +150 °C
Highlight:	multi emitter transistor , silicon power transistors

Switching (200V, 10A)

RDN100N20

Features

1) Low on-resistance.

2) Low input capacitance.

3) Exellent resistance to damage from static electricity.

Application

Switching

Structure

Silicon N-channel

MOS FET

Absolute maximum ratings (Ta=25°C)

Parameter		Symbol	Limits	Unit
Drain-Source Voltage		V_DSS	200	V
Gate-Source Voltage		V_GSS	±30	V
Drain Current	Continuous	I_D	10	A
Drain Current	Pulsed	I_{DP ^*1}	40	A
Reverse Drain Current	Continuous	I_DR	10	A
Reverse Drain Current	Pulsed	I_DRP*1	40	A
Avalanche Current		I_AS*2	10	A
Avalanche Energy		E_AS*2	120	mJ
Total Power Dissipation (TC=25°C)		P_D	35	W
Channel Temperature		T_ch	150	°C
Storage Temperature		T_stg	−55 to +150	°C

∗1 Pw ≤ 10µs, Duty cycle ≤ 1%

∗2 L 4.5mH, VDD=50V, RG=25Ω, 1Pulse, Tch=25°C

External dimensions (Unit : mm)

RDN100N20 Off Line Switcher IC electrical ic Power Mosfet Transistor Switching (200V, 10A)

Equivalent circuit

RDN100N20 Off Line Switcher IC electrical ic Power Mosfet Transistor Switching (200V, 10A)

∗A protection diode is included between the gate and the source terminals to protect the diode against static electricity when the product is in use. Use the protection circuit when the fixed voltages are exceeded.
