2N3440 npn general purpose transistor Power Mosfet Transistor SILICON NPN TRANSISTORS

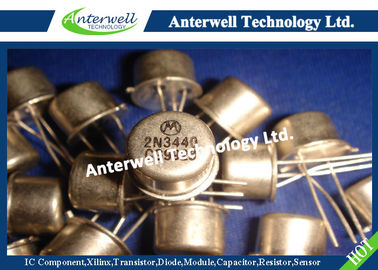

: Large Image : 2N3440 npn general purpose transistor Power Mosfet Transistor SILICON NPN TRANSISTORS

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2N3440

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8700pcs

Contact Now

Detailed Product Description

Emitter-Base Voltage (IC = 0):	7 V	Collector Current:	1 A
Base Current:	0.5 A	Total Dissipation At Tc ≤ 25 ℃:	10 W
Storage Temperature:	-65 To 200 ℃	Max. Operating Junction Temperature:	200℃
Highlight:	electronic pressure sensors , hall effect sensor ic

2N3439

2N3440

SILICON NPN TRANSISTORS

■ SGS-THOMSON PREFERRED SALESTYPES

■ NPN TRANSISTOR

DESCRIPTION

The 2N3439, 2N3440 are silicon epitaxial planar NPN transistors in jedec TO-39 metal case designed for use in consumer and industrial line-operated applications.

These devices are particularly suited as drivers in high-voltage low current inverters, switching and series regulators.

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter	Value		Unit
Symbol	Parameter	2N3439	2N3440	Unit
V_CBO	Collector-Base Voltage (I_E = 0)	450	300	V
V_CEO	Collector-Emitter Voltage (I_B = 0)	350	250	V
V_EBO	Emitter-Base Voltage (I_C = 0)	7		V
I_C	Collector Current	1		A
I_B	Base Current	0.5		A
P_tot	Total Dissipation at Tc ≤ 25 ℃	10		W
P_tot	Total Dissipation at Tamb ≤ 50 ℃	1		W
Tstg	Storage Temperature	-65 to 200		℃
Tj	Max. Operating Junction Temperature	200		℃

2N3440 npn general purpose transistor Power Mosfet Transistor SILICON NPN TRANSISTORS INTERNAL SCHEMATIC DIAGRAM

TO-39 MECHANICAL DATA

2N3440 npn general purpose transistor Power Mosfet Transistor SILICON NPN TRANSISTORS
