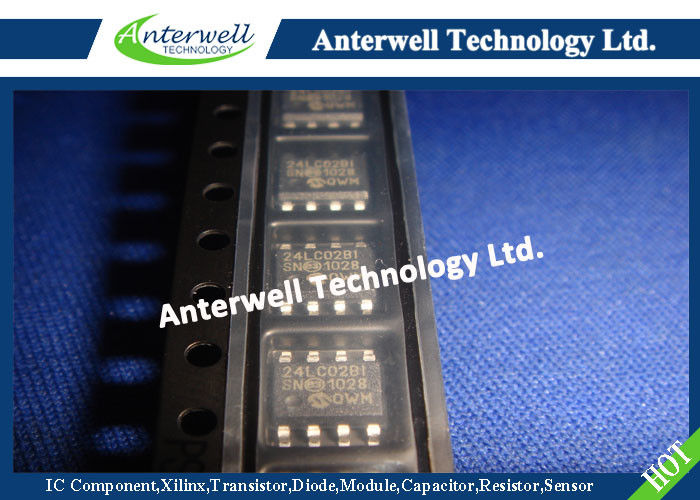

24LC02BI/SN integrated circuit components Integrated Circuit Chip 2K I2C Serial EEPROM

24AA02/24LC02B

2K I2C™ Serial EEPROM

Device Selection Table

Note 1: 100 kHz for V_CC <2.5V

Features

• Single supply with operation down to 1.8V

• Low-power CMOS technology

  - 1 mA active current typical

  - 1 µA standby current typical (I-temp)

• Organized as 1 block of 256 bytes (1 x 256 x 8)

• 2-wire serial interface bus, I2C™ compatible

• Schmitt Trigger inputs for noise suppression

• Output slope control to eliminate ground bounce

• 100 kHz (24AA02) and 400 kHz (24LC02B) compatibility

• Self-timed write cycle (including auto-erase)

• Page write buffer for up to 8 bytes

• 2 ms typical write cycle time for page write

• Hardware write-protect for entire memory

• Can be operated as a serial ROM

• Factory programming (QTP) available

• ESD protection > 4,000V

• 1,000,000 erase/write cycles

• Data retention > 200 years

• 8-lead PDIP, SOIC, TSSOP and MSOP packages

• 5-lead SOT-23 package

• Pb-free finish available

• Available for extended temperature ranges:

  - Industrial (I): -40°C to +85°C

  - Automotive (E): -40°C to +125°C

Description

The Microchip Technology Inc. 24AA02/24LC02B (24XX02*) is a 2 Kbit Electrically Erasable PROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data. The 24XX02 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages and is also available in the 5-lead SOT-23 package.

Absolute Maximum Ratings (†)

V_CC...............................................................................................................................................6.5V

All inputs and outputs w.r.t. V_SS ........................................................................... -0.3V to V_CC +1.0V

Storage temperature ..................................................................................................-65°C to +150°C

Ambient temperature with power applied.....................................................................-65°C to +125°C

ESD protection on all pins ...........................................................................................................≥ 4 kV

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Package Types

Block Diagram
