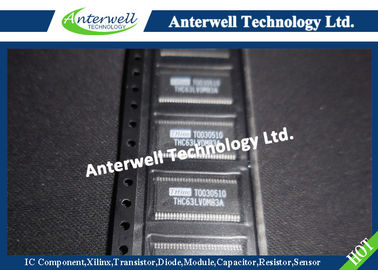

THC63LVDM83A REDUCED SWING LVDS 24Bit COLOR HOST-LCD PANEL INTERFACE circuitboard integratedcircuit

THC63LVDM83D REDUCED SWING LVDS 24Bit COLOR HOST-LCD PANEL INTERFACE

Features

• Wide dot clock range: 8-160MHz suited for NTSC, VGA, SVGA, XGA,SXGA and SXGA+

• PLL requires no external components

• Supports spread spectrum clock generator

• On chip jitter filtering

• Clock edge selectable

• Supports reduced swing LVDS for low EMI

• Power down mode • Low power single 3.3V CMOS design

• Low profile 56 Lead TSSOP Package

• 1.2 up to 3.3V tolerant data inputs to connect directly to       low power,low voltage application and graphic processor.

• Pin compatible with THC63LVDM83C/83R(24bits)

General Description

The THC63LVDM83D transmitter is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to 1080p(60Hz). The THC63LVDM83D converts 28bits of CMOS/TTL data into LVDS(Low Voltage Differential Signaling) data stream. The transmitter can be programmed for rising edge or falling edge clocks through a dedicated pin. At a transmit clock frequency of 160MHz, 24bits of RGB data and 4bits of timing and control data (HSYNC, VSYNC, CNTL1, CNTL2) are transmitted at an effective rate of 1120Mbps per LVDS channel.

Absolute Maximum Ratings 1
