SI7336ADP-T1-E3 N-Channel 30-V (D-S) MOSFET low power mosfet high voltage power mosfet

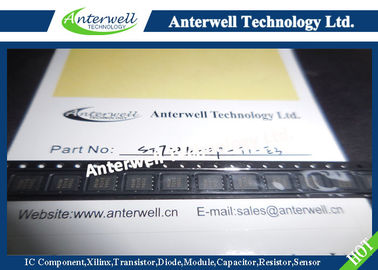

: Large Image : SI7336ADP-T1-E3 N-Channel 30-V (D-S) MOSFET low power mosfet high voltage power mosfet

Product Details:

Place of Origin:	Original
Brand Name:	VISHAY
Certification:	Original Factory Pack
Model Number:	SI7336ADP-T1-E3

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

VDS:	30 V	VGS:	± 20 V
ID:	30 A	IDM:	70 A
IS:	4.5 A
Highlight:	power mosfet ic , multi emitter transistor

N-Channel 30-V (D-S) MOSFET

SI7336ADP-T1-E3 N-Channel 30-V (D-S) MOSFET low power mosfet high voltage power mosfet FEATURES

• Halogen-free available

• Ultra-Low On-Resistance Using High Density TrenchFET® Gen II Power MOSFET Technology

•Qg Optimized

• New Low Thermal Resistance PowerPAK® Package with Low 1.07 mm Profile

• 100 % Rg Tested

• 100 % UIS Tested

APPLICATIONS

• Low-Side DC/DC Conversion

- Notebook

- Server

- Workstation

ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted

Parameter	Symbol	Limits	Unit
Drain-Source Voltage	V_DS	30	V
Gate-Source Voltage	V_GS	± 20	V
Continuous Drain Current (TJ = 150 °C)a TA = 25 °C TA = 70 °C	I_D	30 25	A
Pulsed Drain Current (10 µs Pulse Width)	I_DM	70
Continuous Source Current (Diode Conduction)a	I_S	4.5
Avalanche Current L = 0.1 mH	I_AS	50
Maximum Power Dissipationa TA = 25 °C TA = 70 °C	P_D	5.4 3.4	W
Operating Junction and Storage Temperature Range	T_J, T_stg	- 55 to 150	°C
Soldering Recommendations (Peak Temperature)b, c		260	°C
