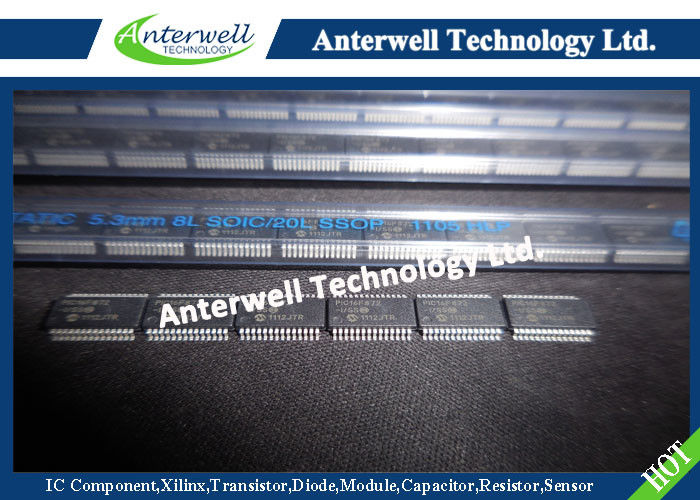

PIC16F872-I/SS 28-Pin, 8-Bit CMOS FLASH Microcontroller electronic components ic

28-Pin, 8-Bit CMOS FLASH Microcontroller

Devices Included in this Data Sheet:

• PIC16F872

Microcontroller Core Features:

• High-performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program branches which are two cycle

• Operating speed:

DC - 20 MHz clock input

DC - 200 ns instruction cycle

• 2K x 14 words of FLASH Program Memory

  128 x 8 bytes of Data Memory (RAM)

  64 x 8 bytes of EEPROM Data Memory

• Pinout compatible to the PIC16C72A

• Interrupt capability (up to 10 sources)

• Eight level deep hardware stack

• Direct, indirect and relative addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
