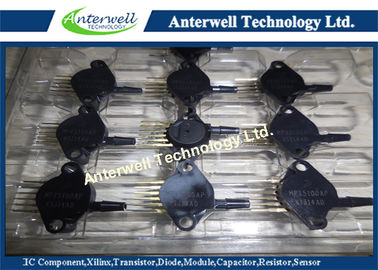

MPX5100AP

Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated, and Calibrated

The MPX5100 series piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.

Features

• 2.5% Maximum Error over 0° to 85°C

• Ideally suited for Microprocessor or Microcontroller-Based Systems

• Patented Silicon Shear Stress Strain Gauge

• Available in Absolute, Differential and Gauge Configurations

• Durable Epoxy Unibody Element

• Easy-to-Use Chip Carrier Option Typical

Applications

• Patient Monitoring            • Process Control

• Pump/Motor Control         • Pressure wSitching
