Product Details:
Payment & Shipping Terms:
|
| Output Voltage: | -3 To Vboot - 18 V | Supply Voltage: | - 0.3 To +18 V |
|---|---|---|---|
| Vboot Floating Supply Voltage: | -1 To 618 V | Allowed Output Slew Rate: | 50 V/ns |
| Junction Temperature: | 150 °C | Storage Temperature: | -50 To 150 °C |
| Highlight: | circuit board ic,electronic chip board |
||

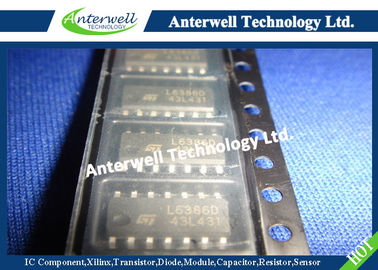

L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver
DESCRIPTION
The L6386 is an high-voltage device, manufactured with the BCD ”OFF-LINE” technology. It has a Driver structure that enables to drive independent referenced Channel Power MOS or IGBT. The Upper (Floating) Section is enabled to work with voltage Rail up to 600V. The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.
ABSOLUTE MAXIMUM RATINGS
| Symbol | Parameter | Value | Unit |
| Vout | Output Voltage | -3 to Vboot - 18 | V |
| Vcc | Supply Voltage | - 0.3 to +18 | V |
| Vboot | Floating Supply Voltage | -1 to 618 | V |
| Vhvg | Upper Gate Output Voltage | - 1 to Vboot | V |
| Vlvg | Lower Gate Output Voltage | -0.3 to Vcc +0.3 | V |
| Vi | Logic Input Voltage | -0.3 to Vcc +0.3 | V |
| Vdiag | Open Drain Forced Voltage | -0.3 to Vcc +0.3 | V |
| Vcin | Comparator Input Voltage | -0.3 to Vcc +0.3 | V |
| dVout/dt | Allowed Output Slew Rate | 50 | V/ns |
| Ptot | Total Power Dissipation (Tj = 85 °C) | 750 | mW |
| Tj | Junction Temperature | 150 | °C |
| Ts | Storage Temperature | -50 to 150 | °C |
Note: ESD immunity for pins 12, 13 and 14 is guaranteed up to 900V (Human Body Model)
BLOCK DIAGRAM
PIN CONNECTION
