Product Details:
Payment & Shipping Terms:
|
| Operating Junction Temp.: | - 50℃+ 175℃ | Storage Temperature: | - 50℃+ 175℃ |
|---|---|---|---|
| Max. Power Dissipation: | 500 MW | Nominal Current: | 150 To 300 MA |
| Repetitive Peak Reverse Voltage: | 50 To 100 V | Reverse Breakdown Voltage: | 100 V |
| Highlight: | led diode smd,led diode strip |
||

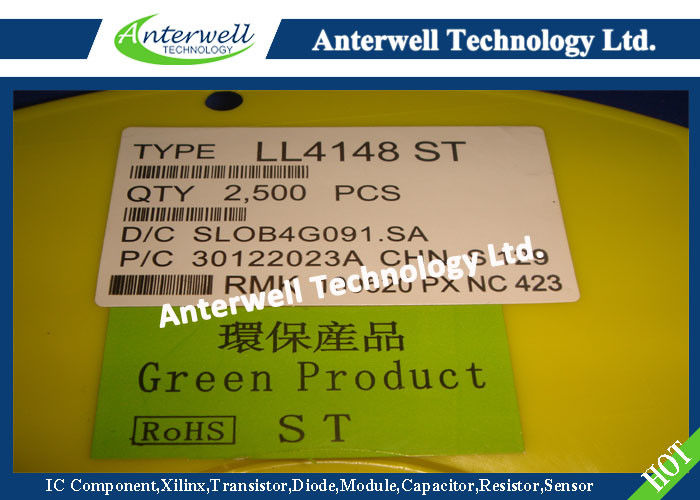

LL 4148, LL 4150, LL 4151, LL 4448
Surface Mount Silicon Planar Diodes
Nominal current 150...300 mA
Nennstrom
Repetitive peak reverse voltage 50...100 V
Periodische Spitzensperrspannung
Glass case MiniMELF SOD-80
Glasgehause MiniMELF DO-213AA
Weight approx. 0.04 g
Gewicht ca.
Maximum ratings
| Type |
Reverse voltage VRM [V] |
Reverse Breakdown Voltage VRRM [V] 1 ) |
| LL 4148 | 75 | 100 |
| LL 4150 | 50 | 50 |
| LL 4151 | 50 | 75 |
| LL 4448 | 75 | 100 |
|
LL4148 LL4448 |
LL4150 | LL4151 | ||
|
Max. average forward rectified current, R-load Dauergrenzstrom in Einwegschaltung mit R-Last |
IFAV | 150 mA2 ) | 300 mA2 ) | 200 mA2 ) |
|
Repetitive peak forward current Periodischer Spitzenstrom |
IFRM | 500 mA2 ) | 600 mA2 ) | 500 mA2 ) |
|
Non-repetitive peak fwd. current tp = 1μs Stoflstrom Grenzwert Tj = 25℃ |
IFSM | 2000 mA | 4000 mA | 2000 mA |
|
Max. power dissipation TA = 25℃ Max. Verlustleistung |
Ptot | 500 mW 2 ) | ||
| Operating junction temp. | Tj | - 50℃+ 175℃ | ||
| Storage temperature | TS | - 50℃+ 175℃ | ||
1) Tested with 100 A pulses ñ Gemessen mit 100 A-Impulsen
2 ) Mounted on P.C. board with 25 mm2 copper pads at each terminal
Montage auf Leiterplatte mit 25 mm2 Kupferbelag (Lˆtpad) an jedem Anschluf
