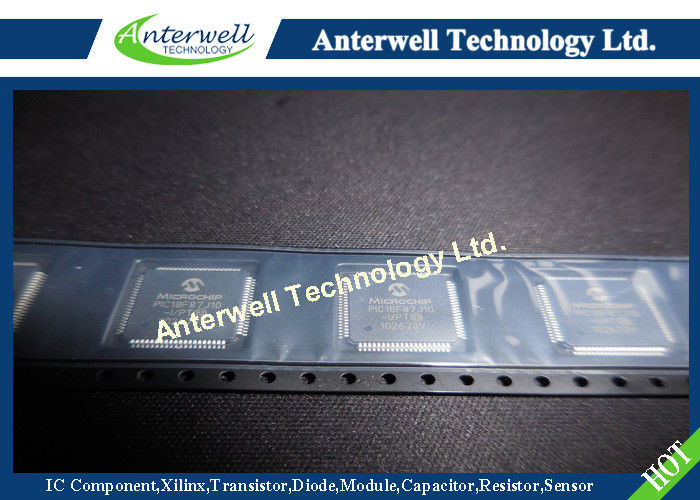

PIC18F87J10-I/PT TQFP-64 Programmable IC Chips , Flash linear digital integrated circuits

PIC18F87J10-I/PT TQFP-64 Programmable IC Chips , Flash linear digital integrated circuits

PIC18F87J10-I/PT

64/80-Pin, High-Performance 1-Mbit Flash Microcontrollers with nanoWatt Technology

Special Microcontroller Features:

• Operating Voltage Range: 2.0V to 3.6V

• 5.5V Tolerant Input (digital pins only)

• On-Chip 2.5V Regulator

• Low-Power, High-Speed CMOS Flash Technology

• C Compiler Optimized Architecture:

- Optional extended instruction set designed to optimize re-entrant code

• Priority Levels for Interrupts

• 8 x 8 Single-Cycle Hardware Multiplier

• Extended Watchdog Timer (WDT): - Programmable period from 4 ms to 131s

• Single-Supply In-Circuit Serial Programming™ (ICSP™) via Two Pins

• In-Circuit Debug (ICD) with Three Break points via Two Pins

• Power-Managed modes:

- Run: CPU on, peripherals on - Idle: CPU off, peripherals on - Sleep: CPU off, peripherals off

• Flash Program Memory:

- 1000 erase/write cycle endurance typical

- 20 year retention minimum

- Self-write capability during normal operation

Flexible Oscillator Structure:

• Two Crystal modes, up to 40 MHz

• 4x Phase Lock Loop (PLL)

• Two External Clock modes, up to 40 MHz

• Internal 31 kHz Oscillator

• Secondary Oscillator using Timer1 @ 32 kHz

• Two-Speed Oscillator Start-up

• Fail-Safe Clock Monitor: - Allows for safe shutdown if peripheral clock stops

Peripheral Highlights:

• High-Current Sink/Source 25 mA/25 mA (PORTB and PORTC)

• Four Programmable External Interrupts

• Four Input Change Interrupts

• Two Capture/Compare/PWM (CCP) modules

• Three Enhanced Capture/Compare/PWM (ECCP) modules:

- One, two or four PWM outputs

- Selectable polarity

- Programmable dead time

- Auto-shutdown and auto-restart

• Two Master Synchronous Serial Port (MSSP) modules Supporting 3-Wire SPI (all 4 modes) and I 2C™ Master and Slave modes

• Two Enhanced Addressable USART modules:

- Supports RS-485, RS-232 and LIN/2602 - Auto-wake-up on Start bit

- Auto-Baud Detect (ABD)

• 10-Bit, up to 15-Channel Analog-to-Digital Converter module (A/D):

- Auto-acquisition capability - Conversion available during Sleep - Self-calibration feature

• Dual Analog Comparators with Input Multiplexing
