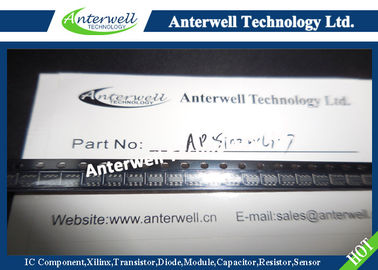

AP5100WG -7 1.2A Step Down Converter full bridge rectifier circuit with 1.4MHz Switching Frequency
Features
• VIN 4.75V to 24V
• Load current of up to 1.2A
• Internal Power MOSFET
• Stable with Low ESR Ceramic Output Capacitors
• Up to 90% Efficiency
• 0.1µA Shutdown Mode
• Fixed 1.4MHz Frequency
• Thermal Shutdown
• Cycle-by-Cycle Over Current Protection
• Resistor divider adjustable Output: 0.81V to 15V
• SOT26: Available in “Green” Molding Compound (no Br, Sb)
• Lead Free Finish/RoHS Compliant (Note 1)
General Description
The AP5100 is a current mode step-down converter with a built-in power MOSFET to enable smallest solution size power conversion.
With the low series resistance power switch it enables a constant output current of up to 1.2A over a wide input supply range. The load and line regulation has excellent response time over the operating input voltage and temperature range.
The AP5100 is self protected, through a cycle-by-cycle current limiting algorithm and an on chip thermal protection.
Typical Applications
