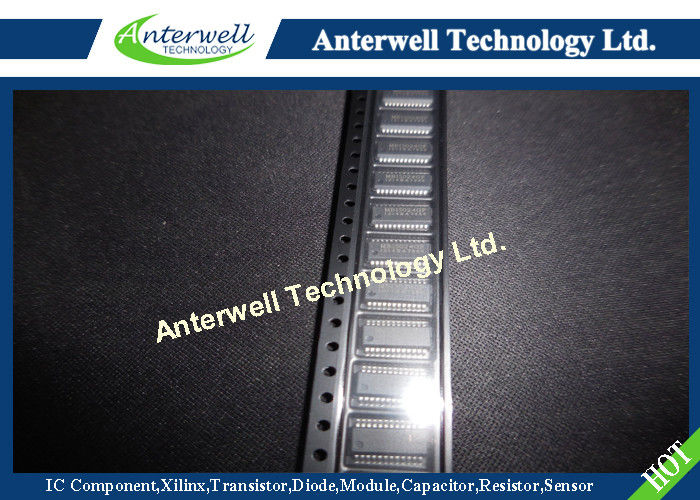

MBI5024GP SOP-24 Integrated circuit Chip IC Electronics

16-bit Constant Current LED Sink Driver

Features

· 16 constant-current output channels

· Constant output current invariant to load voltage change: Constant output current range: 3-50 mA

· Excellent output current accuracy: between channels: ±3% (max.), and between ICs: ±6% (max.)

· Output current adjusted through an external resistor

· Fast response of output current, OE (min.): 400 ns

· 25MHz clock frequency

· Schmitt trigger input

· 3.3V / 5V supply voltage

Maximum Ratings

Supply Voltage VDD 0~7.0 V

Input Voltage VIN -0.4~VDD + 0.4 V

Output Current IOUT +50 mA

Output Voltage VDS -0.5~+20.0 V

Clock Frequency FCLK 25 MHz

GND Terminal Current IGND 1440 mA

Operating Temperature Topr -40~+85 °C

Storage Temperature Tstg -55~+150 °C

CN – type 53.82 CNS – type 66.74 CD– type 49.81 CF – type 59.01

Thermal Resistance (On PCB, Ta=25°C) CP – type Rth(j-a) 72.43 °C/W
