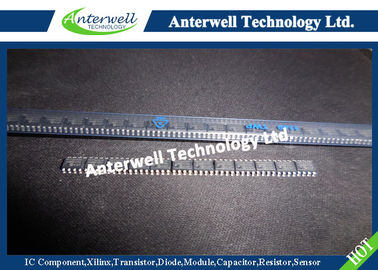

MCP6032-E/SN 0.9 μA, High Precision Op Amps ic circuit board led circuit board

0.9 µA, High Precision Op Amps

Features

• Rail-to-Rail Input and Output

• Low Offset Voltage: ±150 µV (maximum)

• Ultra Low Quiescent Current: 0.9 µA (typical)

• Wide Power Supply Voltage: 1.8V to 5.5V

• Gain Bandwidth Product: 10 kHz (typical)

• Unity Gain Stable

• Chip Select (CS) capability: MCP6033

• Extended Temperature Range: - -40°C to +125°C

• No Phase Reversal

Applications

• Toll Booth Tags

• Wearable Products

• Battery Current Monitoring

• Sensor Conditioning

• Battery Powered

Description

The Microchip Technology Inc. MCP6031/2/3/4 family of operational amplifiers (op amps) operate with a single supply voltage as low as 1.8V, while drawing ultra low quiescent current per amplifier (0.9 µA, typical). This family also has low input offset voltage (±150 µV, maximum) and rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications.

The MCP6031/2/3/4 family is unity gain stable and has a gain bandwidth product of 10 kHz (typical). These specs make these op amps appropriate for low frequency applications, such as battery current monitoring and sensor conditioning.

The MCP6031/2/3/4 family is offered in single (MCP6031), single with power saving Chip Select (CS) input (MCP6033), dual (MCP6032), and quad (MCP6034) configurations.

The MCP6031/2/3/4 family is designed with Microchip’s advanced CMOS process. All devices are available in the extended temperature range, with a power supply range of 1.8V to 5.5V.
