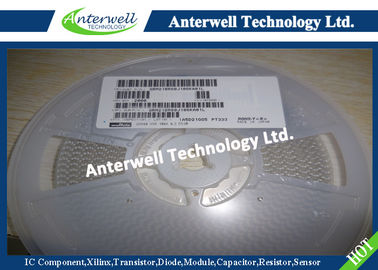

GRM21BR60J106KA01L Ceramic Capacitor 0805 X5R 10μF 6.3V SMD Ferrite Bead ( E- pHEMT) GRM188R71H104KA93D

Chip Monolithic Ceramic Capacitor 0805 X5R 10μF 6.3V

The MMG15241H is a high dynamic range, low noise amplifier MMIC, housed

in a SOT --89 standard plastic package. It is ideal for Cellular, PCS, LTE,

TD--SCDMA, W--CDMA base station, wireless LAN and other systems in the

500 to 2800 MHz frequency range. With high OIP3 and low noise figure, it can

be utilized as a driver amplifier in the transmit chain and as a second stage LNA

in the receive chain.

Features

• Frequency: 500--2800 MHz

• Noise Figure: 1.6 dB @ 2140 MHz

• P1dB: 24 dBm @ 2140 MHz

• Small--Signal Gain: 15.9 dB @ 2140 MHz

• Third Order Output Intercept Point: 39.4 dBm @ 2140 MHz

• Single 5 Volt Supply

• Supply Current: 85 mA

• 50 Ohm Operation (some external matching required)

• Low Cost SOT--89 Surface Mount Package

• RoHS Compliant

• In Tape and Reel. T1 Suffix = 1000 Units, 12 mm Tape Width, 7 inch Reel.

                Functional Pin Description
