SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

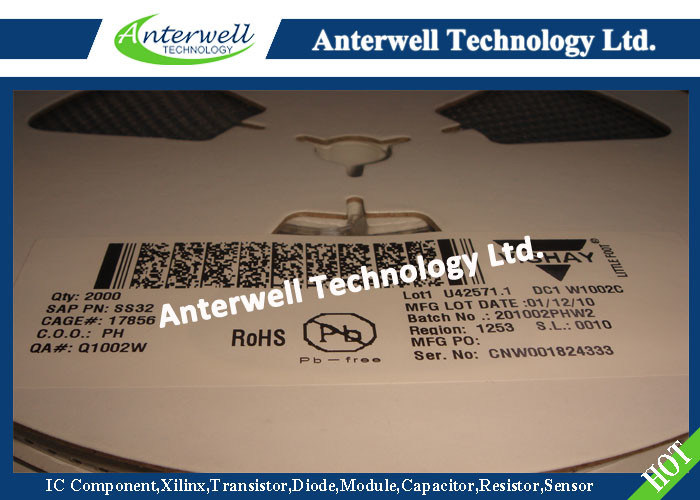

: Large Image : SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SS32

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8800pcs

Contact Now

Detailed Product Description

Maximum Average Forward Rectified Current:	3.0 A	Peak Forward Surge Current (JEDEC Method):	80.0 A
Maximum Thermal Resistance, Junction To Ambient:	17 ℃/W	Typical Junction Capacitance:	300 Pf
Operating Junction Temperature Range:	-50 To +125 ℃	Storage Temperature Range:	-65 To +150 ℃
Highlight:	diode rectifier circuit , bridge rectifier circuit

SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

Features

SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

• Low Profile in SMC Package

• Low power loss, high efficiency

• Low Forward Voltage Drop

• Plastic package has Underwriters Laboratory Flammability Classification 94V-0

• RoHS Compliant

Mechanical Data

Case: JEDEC DO-214AB(SMC) molded plastic

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes the cathode end

Weight: 0.007 Ounce, 0. 21 gram

Maximum Ratings & Electrical Characteristics (T_Ambient=25ºC unless noted otherwise)

Symbols	Description	SS32	SS33	SS34	SS35	SS36	SS38	SS39	SS310	Unit
V_RMS	Maximum RMS voltage	14	21	28	35	42	56	63	70	V
V_RRM	Maximum repetitive peak reverse voltage	20	30	40	50	60	80	90	100	V
V_DC	Maximum DC blocking voltage	20	30	40	50	60	80	90	100	V
I_(AV)	Maximum average forward rectified current (FIG.1)	3.0								A
I_FSM	Peak forward surge current (JEDEC Method)	80.0								A
V_F	Maximum instantaneous forward voltage at 3.0A	0.50			0.70		0.85			V
I_R	Maximum DC reverse current at rated DC blocking voltage	TA =25°C 2.0								mA
I_R	Maximum DC reverse current at rated DC blocking voltage	TA =100°C 20.0								mA
R_θJA	Maximum thermal resistance, Junction to Ambient	17								°C/W
C_J	Typical Junction Capacitance (NOTE)	300								pf
T_J	Operating junction temperature range	-50 to +125			-50 to +150					°C
T_STG	Storage Temperature Range	-65 to +150								°C
