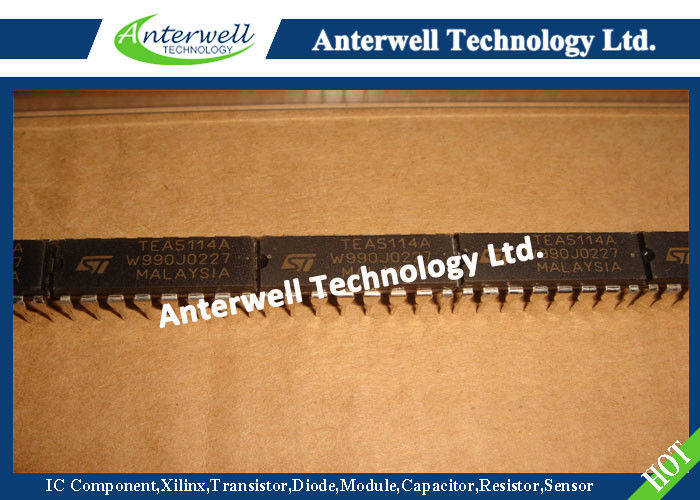

TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

Large Image : TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TEA5114A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8200pcs

Contact Now

Detailed Product Description

Supply Voltage:	18 V	Junction Temperature:	– 40 To 150 °C
Storage Temperature:	– 40 To 150 °C	Minimum Load Resistor On Each Output VCC = 12 V:	300 Ω
Operating Ambient Temperature:	0 To 70 °C	Junction-ambient Thermal Resistance:	80 °C/W
Highlight:	chip in electronics , integrated components

TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

TEA5114A

RGB SWITCHING CIRCUIT

. 25MHz BANDWIDTH

. CROSSTALK : 55dB

. SHORT CIRCUIT TO GROUND OR V_CC PROTECTED

. ANTI SATURATION GAIN CHANGING

. VIDEO SWITCHING

DESCRIPTION

This integrated circuit provides RGB switching allowing connections between peri TV plug, internal RGB generator and video processor in a TV set. The input signal black level is tied to the same reference voltageon each input in order to haveno differential voltage when switching two RGB generators.

An AC output signal higher than 2 Vpp makes gain goingslowly down to 0dBto protect the TV set video amplifier from saturation.

Fast blanking output is a logicial OR between FB1 (Pin 8) and FB2 (Pin 10).

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	18	V
Tj	Junction Temperature	– 40 to 150	°C
T_stg	Storage Temperature	– 40 to 150	°C
Z_L	Minimum Load Resistor on Each Output V_CC = 12 V V_CC = 10 V	300 150	Ω Ω
T_amb	Operating Ambient Temperature	0 to 70	°C
