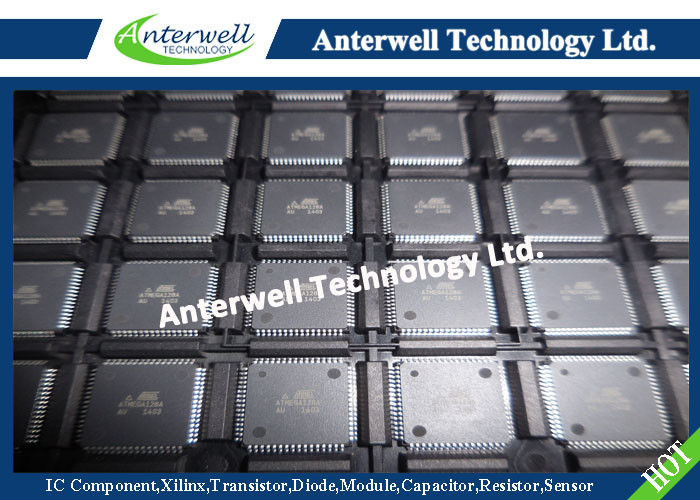

ATMEGA128A-AU Programmable IC Chips128K Bytes In-System Programmable Flash
ATmega128A


Features
• High-performance, Low-power AVR® 8-bit Microcontroller

• Advanced RISC Architecture
  – 133 Powerful Instructions
  – Most Single Clock Cycle Execution
  – 32 x 8 General Purpose Working Registers + Peripheral Control Registers
  – Fully Static Operation
  – Up to 16 MIPS Throughput at 16 MHz
  – On-chip 2-cycle Multiplier

• High Endurance Non-volatile Memory segments
  – 128K Bytes of In-System Self-programmable Flash program memory
  – 4K Bytes EEPROM
  – 4K Bytes Internal SRAM
  – Write/Erase cycles: 10,000 Flash/100,000 EEPROM
  – Data retention: 20 years at 85°C/100 years at 25°C⁽¹⁾
  – Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip
     Boot Program True Read-While-Write Operation
  – Up to 64K Bytes Optional External Memory Space
  – Programming Lock for Software Security
  – SPI Interface for In-System Programming

• JTAG (IEEE std. 1149.1 Compliant) Interface
  – Boundary-scan Capabilities According to the JTAG Standard
  – Extensive On-chip Debug Support
  – Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface

• Peripheral Features
  – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
  – Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and Capture Mode
  – Real Time Counter with Separate Oscillator
  – Two 8-bit PWM Channels
  – 6 PWM Channels with Programmable Resolution from 2 to 16 Bits
  – Output Compare Modulator
  – 8-channel, 10-bit ADC 8 Single-ended Channels 7 Differential Channels 2 Differential Channels
     with Programmable Gain at 1x, 10x, or 200x
  – Byte-oriented Two-wire Serial Interface
  – Dual Programmable Serial USARTs
  – Master/Slave SPI Serial Interface
  – Programmable Watchdog Timer with On-chip Oscillator
  – On-chip Analog Comparator

• Special Microcontroller Features
  – Power-on Reset and Programmable Brown-out Detection
  – Internal Calibrated RC Oscillator
  – External and Internal Interrupt Sources
  – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby,
     and Extended Standby
  – Software Selectable Clock Frequency
  – ATmega103 Compatibility Mode Selected by a Fuse
  – Global Pull-up Disable

• I/O and Packages
  – 53 Programmable I/O Lines
  – 64-lead TQFP and 64-pad QFN/MLF

• Operating Voltages
  – 2.7 - 5.5V

• Speed Grades
  – 0 - 16 MHz

Pin Configurations

Pinout ATmega128A

Note: The Pinout figure applies to both TQFP and MLF packages. The bottom pad under the QFN/MLF package should be soldered to ground.

Overview
The ATmega128A is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega128A achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Block Diagram
