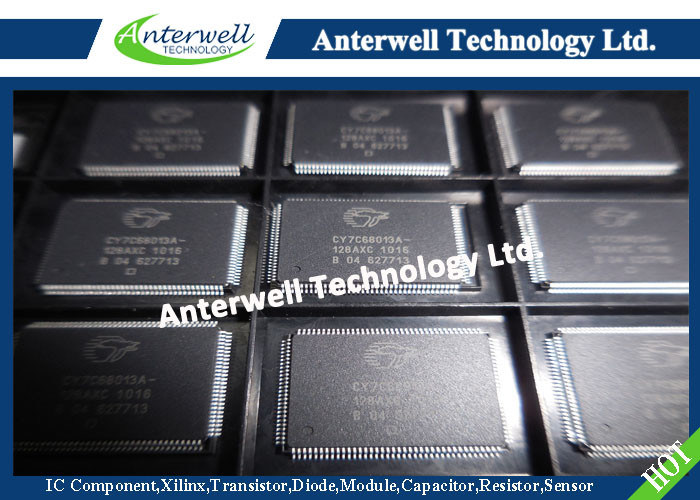

CY7C68013A-128AXC IC Chip microchips and integrated circuits



Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

HIP4080AIBZT	3925	INTERSIL	15+	SOP
TNY266PN	3970	POWER	16+	DIP7
LM7912CT	3990	NS	16+	TO-220
HCNW4503	3991	AVAGO	14+	SOP8DIP8
ICL7650SCBA	3996	INTERSIL	14+	SOP-8
LM2575HVT-ADJ	3997	NS	14+	TO-220
MUR3020PT	3997	ON	16+	TO-3P
IRFR5305	3998	IR	16+	TO-252
MJ802	3998	ON	13+	TO-3
LBAT54XV2T1G	3999	ON	15+	SOD-523
VN10LFTA	3999	ZETEX	16+	SOT23
1N5341B	4000	ON	16+	CASE17
1N5343B	4000	ON	14+	DO-02
2SC2383	4000	TOSHIBA	14+	TO-92
2SC3807	4000	SANYO	14+	TO-126
2SK170BL	4000	TOSHIBA	16+	TO-92
74HC174D	4000	NXP	16+	SOP-16
74LVC245AD	4000	NXP	13+	SOP
AD8572ARZ	4000	AD	15+	SOP8
AT24C512C-SSHD-T	4000	ATEML	16+	SOP8
BCV48	4000	NXP	16+	SOT-89
BD137	4000	ST	14+	TO-126
BTS721L1	4000		14+	SOP-20
CD4027BE	4000	TI	14+	DIP
CPC1017N	4000	CLARE	16+	SOP4
IRF7307	4000	IR	16+	SOP8
IRFR210	4000	IR	13+	SOT-252
LT1963AEST-3.3	4000	LT	15+	SOT-223
MIC4424BN	4000	MICREL	16+	DIP8
MICROSMD050F-2	4000	TYCO	16+	SMD





CY7C68013A/CY7C68014A

CY7C68015A/CY7C68016A

EZ-USB FX2LP™ USB Microcontroller



1.0 Features (CY7C68013A/14A/15A/16A)



• USB 2.0–USB-IF high speed certified (TID # 40440111)

• Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor

• Fit, form and function compatible with the FX2

  — Pin-compatible

  — Object-code-compatible

  — Functionally-compatible (FX2LP is a superset)



• Ultra Low power: ICC no more than 85 mA in any mode

  — Ideal for bus and battery powered applications

• Software: 8051 code runs from:

  — Internal RAM, which is downloaded via USB

  — Internal RAM, which is loaded from EEPROM

  — External memory device (128 pin package)



• 16 KBytes of on-chip Code/Data RAM

• Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints

  — Buffering options: double, triple, and quad

• Additional programmable (BULK/INTERRUPT) 64-byte endpoint

• 8- or 16-bit external data interface



• Smart Media Standard ECC generation

• GPIF (General Programmable Interface)

  — Allows direct connection to most parallel interface

  — Programmable waveform descriptors and configuration registers to define waveforms

  — Supports multiple Ready (RDY) inputs and Control (CTL) outputs



• Integrated, industry-standard enhanced 8051

  — 48-MHz, 24-MHz, or 12-MHz CPU operation

  — Four clocks per instruction cycle

  — Two USARTS

  — Three counter/timers

  — Expanded interrupt system

  — Two data pointers



• 3.3V operation with 5V tolerant inputs

• Vectored USB interrupts and GPIF/FIFO interrupts

• Separate data buffers for the Set-up and Data portions of a CONTROL transfer

• Integrated I2C controller, runs at 100 or 400 kHz



• Four integrated FIFOs

  — Integrated glue logic and FIFOs lower system cost

  — Automatic conversion to and from 16-bit buses

  — Master or slave operation

  — Uses external clock or asynchronous strobes

  — Easy interface to ASIC and DSP ICs



1.1 Features (CY7C68013A/14A only)



• CY7C68014A: Ideal for battery powered applications

  — Suspend current: 100 µA (typ)

• CY7C68013A: Ideal for non-battery powered applications

  — Suspend current: 300 µA (typ)



• Available in four lead-free packages with up to 40 GPIOs

  — 128-pin TQFP (40 GPIOs), 100-pin TQFP (40 GPIOs),

       56-pin QFN (24 GPIOs) and 56-pin SSOP (24 GPIOs)



1.2 Features (CY7C68015A/16A only)



• CY7C68016A: Ideal for battery powered applications

  — Suspend current: 100 µA (typ)

• CY7C68015A: Ideal for non-battery powered applications

  — Suspend current: 300 µA (typ)

• Available in lead-free 56-pin QFN package (26 GPIOs)

  — 2 more GPIOs than CY7C68013A/14A enabling additional features in same footprint



Cypress Semiconductor Corporation’s (Cypress’s) EZ-USB FX2LP (CY7C68013A/14A) is a low-power version of the EZ-USB FX2 (CY7C68013), which is a highly integrated, low-power USB 2.0 microcontroller. By integrating the USB 2.0 transceiver, serial interface engine (SIE), enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a very cost-effective solution that provides superior time-to-market advantages with low power to enable bus powered applications.



The ingenious architecture of FX2LP results in data transfer rates of over 53 Mbytes per second, the maximum-allowable USB 2.0 bandwidth, while still using a low-cost 8051 microcontroller in a package as small as a 56 QFN. Because it incorporates the USB 2.0 transceiver, the FX2LP is more economical, providing a smaller footprint solution than USB 2.0 SIE or external transceiver implementations. With EZ-USB FX2LP, the Cypress Smart SIE handles most of the USB 1.1 and 2.0 protocol in hardware, freeing the embedded microcontroller for application-specific functions and decreasing development time to ensure USB compatibility.



The General Programmable Interface (GPIF) and Master/Slave Endpoint FIFO (8- or 16-bit data bus) provides an easy and glueless interface to popular interfaces such as ATA, UTOPIA, EPP, PCMCIA, and most DSP/processors.



The FX2LP draws considerably less current than the FX2 (CY7C68013), has double the on-chip code/data RAM and is fit, form and function compatible with the 56-, 100-, and 128- pin FX2.



Four packages are defined for the family: 56 SSOP, 56 QFN, 100 TQFP, and 128 TQFP.



2.0 Applications



• Portable video recorder

• MPEG/TV conversion

• DSL modems

• ATA interface

• Memory card readers

• Legacy conversion devices



• Cameras

• Scanners

• Home PNA

• Wireless LAN

• MP3 players

• Networking



The “Reference Designs” section of the Cypress web site provides additional tools for typical USB 2.0 applications. Each reference design comes complete with firmware source and object code, schematics, and documentation. Please visit http://www.cypress.com for more information.



Absolute Maximum Ratings

Storage Temperature ............................................................................................–65°C to +150°C

Ambient Temperature with Power Supplied...................................................................0°C to +70°C

Supply Voltage to Ground Potential............................................................................–0.5V to +4.0V

DC Input Voltage to Any Input Pin ....................................................................................... 5.25V^[15]



DC Voltage Applied to Outputs in High Z State.................................................. –0.5V to V_CC + 0.5V

Power Dissipation ................................................................................................................. 300 mW

Static Discharge Voltage ...................................................................................................... > 2000V

Max Output Current, per I/O port ............................................................................................. 10 mA

Max Output Current, all five I/O ports (128- and 100-pin packages) ........................................ 50 mA



Operating Conditions

T_A (Ambient Temperature Under Bias) .........................................................................0°C to +70°C

Supply Voltage .......................................................................................................+3.15V to +3.45V

Ground Voltage............................................................................................................................. 0V

F_OSC (Oscillator or Crystal Frequency)................................................................ 24 MHz ± 100 ppm

............................................................................................................................... Parallel Resonant



Block Diagram
