EEEFK0J152P SMD Ferrite Bead Aluminum Electrolytic Capacitors

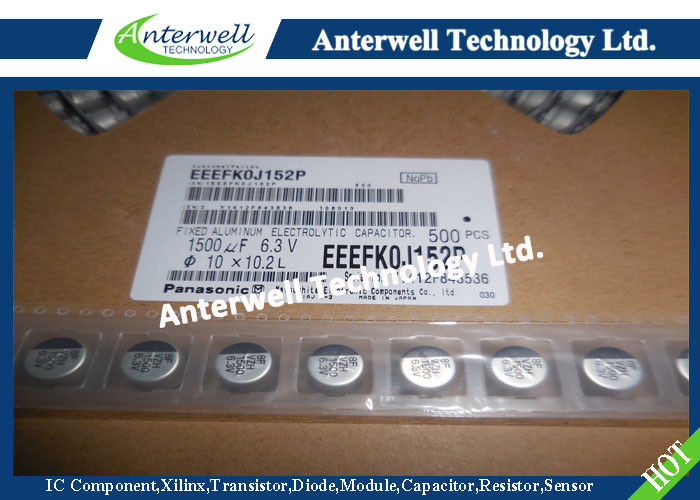

: Large Image : EEEFK0J152P SMD Ferrite Bead Aluminum Electrolytic Capacitors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	EEEFK0J152P

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Category Temp. Range:

–55 °C To +105 °C

Rated W.V.Range:

6.3 V.DC To 100 V.DC

Nominal Cap.Range:

3.3 µF To 6800 µF

Capacitance Tolerance:

±20 % (120 Hz/+20 °C)

Highlight:

multilayer ceramic chip capacitors

smd ceramic capacitor

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

MAX705EPA	4111	MAXIM	16+	DIP
VIPER28LN	4111	ST	16+	DIP-7
ULN2003AN	4112	TI	13+	DIP16
CPC5710NTR	4120	CLAREC	15+	SOP8
IS62WV5128BLL-55HLI	4120	ISSI	16+	TSOP
SUD25N06-45L	4120	VISHAY	16+	TO-252
TLP281-4	4120	TOSHIBA	14+	SOP-16
NCP1117	4125	ON	14+	SOT-223
ULN2803	4178	TOS	14+	DIP
1N4007	40000	MIC	16+	DO-41
A03400A	4200	AOS	16+	SOT-23
AP85T03GH	4200	APEC	13+	TO-252
BCX51-10	4200		15+	SOT-89
BT139X-600E	4200	NXP	16+	TO-220F
HD74LS151P	4200	HIT	16+	DIP
IRF9Z24NPBF	4200	IR	14+	TO-220
LM5007MM	4200	NS	14+	MSOP8
MC74VHC1GT32DFT1G	4200	ON	14+	SC70-5
MCIMX515DJM8C	4200	FREESCALE	16+	BGA
MSP430F2232IDAR	4200	TI	16+	TSSOP38
NC7S04M5X	4200	FAIRCHILD	13+	SOT-153
SB360	4200	VISHAY	15+	DO-201AD
SC16C554BIB64	4200	NXP	16+	QFP
SN74LVC1G32DBVR	4200	TI	16+	SOT-153
SS34	4200	VISHAY	14+	SMA
TPS61221DCKR	4200	TI	14+	SC70-6
EP3C10E144C8N	4210	ALTERA	14+	TQFP
TLP161G	4210	TOSHIBA	16+	SOP4
GP1A52HRJ00F	4211	SHARP	16+	DIP
HCF4556BE	4211	STM	13+	DIP-16

Aluminum Electrolytic Capacitors/ FK

Surface Mount Type

Features

● Endurance: 2000 h to 5000 h at 105 °C

● Low impedance (40 % to 60 % less than FC series) Miniaturized (30 % to 50 % less than FC series)

● Vibration-proof product is available upon request. (φ8 mm and larger)

● RoHS directive compliant

Specifications

Category Temp. Range	–55 °C to +105 °C
Rated W.V.Range	6.3 V.DC to 100 V.DC
Nominal Cap.Range	3.3 µF to 6800 µF
Capacitance Tolerance	±20 % (120 Hz/+20 °C)
DC Leakage Cur rent	I ≦ 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)
tan δ	Please see the attached standard products list
Characteristics at Low Temperature	W.V. (V)	6.3	10	16	25	35	50	63	80	100	(Impedance ratio at 120 Hz)
	Z(–25 °C)/Z(+20 °C)	2	2	2	2	2	2	2	2	2
	Z(–40 °C)/Z(+20 °C)	3	3	3	3	3	3	3	3	3
	Z(–55 °C)/Z(+20 °C)	4	4	4	3	3	3	3	3	3
Endurance	After applying rated working voltage for 2000 hours at +105 °C±2 °C and then being stabilized at +20 °C, Capacitors shall meet the following limits. ( > φ12.5 and suffi x “G” in φ810.2, φ1010.2 are 5000 hours)
	Capacitance change		±30 % of initial measured value (Suffi x “G” is 35 %)
	tan δ		≦ 200 % of initial specifi ed value (Suffi x “G” is 300 %)
	DC leakage current		≦ initial specifi ed value
Shelf Life	After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized at +20 °C, capacitors shall meet the limits specifi ed in Endurance (With voltage treatment)
Resistance to Soldering Heat	After refl ow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.
	Capacitance change		±10 % of initial measured value
	tan δ		≦ initial specifi ed value
	DC leakage current		≦ initial specifi ed value
