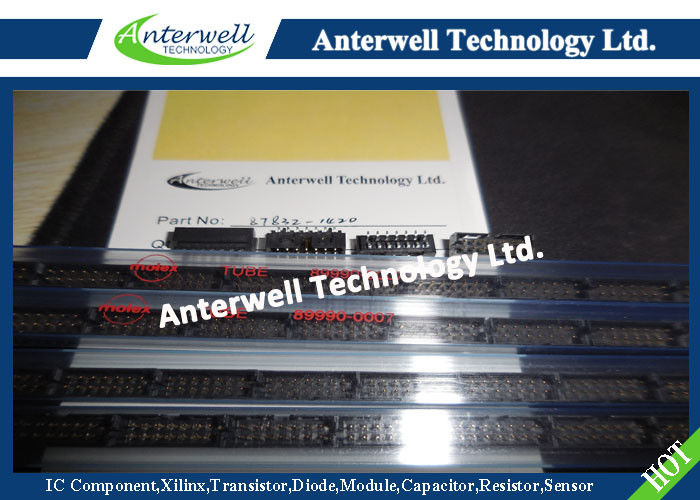

87832-1420 Mosfet Power Module Electronics ICs Chip Integarted Circuts

A part  of stock list

Feature

Agency Certification CSA LR19980 UL E29179

General Product Family PCB Headers Series 87832

Application Wire-to-Board Comments Contact Molex for application in automotive industry

MolexKits Yes Overview milligrid Product Name Milli-Grid™

Physical Breakaway No Circuits (Loaded) 14 Circuits (maximum) 14 Color

- Resin Black First Mate / Last Break No Flammability 94V-0 Glow-Wire Compliant

No Guide to Mating Part No Keying to Mating Part Yes Lock to Mating Part Yes

Material - Metal Phosphor Bronze Material - Plating Mating Gold Material

- Plating Termination Tin Material - Resin Nylon Number of Rows 2 Orientation Vertical PCB Locator Yes PCB Retention None Packaging Type Tube Pitch - Mating Interface (in) 0.079 In Pitch - Mating Interface (mm) 2.00 mm Pitch - Term. Interface (in) 0.079 In Pitch - Term. Interface (mm) 2.00 mm Plating min: Mating (µin) 15 Plating min: Mating (µm) 0.38 Plating min: Termination (µin) 75 Plating min: Termination (µm) 1.88

Temperature Range - Operating -55°C to +105°C

Termination Interface: Style Surface Mount Electrical Current

- Maximum per Contact 2A Voltage - Maximum 125V

Solder Process Data Duration at Max.

Process Temperature (seconds) 10 Lead-free

Process Capability Reflow Capable (SMT only) Max. Cycles at Max.

Process Temperature 1 Process Temperature max. C 260

Material Info Reference - Drawing Numbers Product Specification

PS-87831-027 Sales Drawing SD-87832-006
