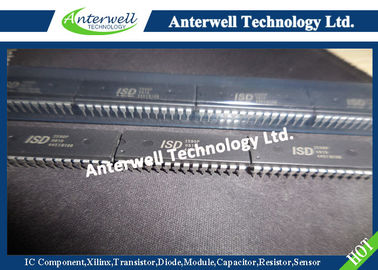

ISD2590PY Electronics Components Single Chip Voice Record / Playback Devices led circuit board

ISD2590PY Electronics Components Single Chip Voice Record / Playback Devices led circuit board

STOCK List

ISD2590PY

Single-Chip Voice Record/Playback Devices

FEATURES

• Easy-to-use single-chip voice Record/ Playback solution

• High-quality, natural voice/audio reproduction

• Manual switch or microcontroller compatible Playback can be edge- or levelactivated

• Single-chip durations of 32*, 40*, 48*, 64*, 60, 75, 90, and 120 seconds

• Directly cascadable for longer durations

• Automatic Power-Down (Push-Button Mode) – Standby current 1 µA (typical)

• Zero-power message storage – Eliminates battery backup circuits

• Fully addressable to handle multiple messages

• 100-year message retention (typical)

• 100,000 record cycles (typical)

• On-chip clock source

• No algorithm development required

• Single +5 volt power supply

• Available in die form, DIP, SOIC, and TSOP packaging

• Industrial temperature (-40°C to +85°C) versions available

GENERAL DESCRIPTION

Information Storage Devices' ISD2500 ChipCorder® Series provides high-quality, single-chip Record/Playback solutions for 32- to 120-second messaging applications. The CMOS devices include an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, speaker amplifier, and high density multi-level storage array. In addition, the ISD2500 is microcontroller compatible, allowing complex messaging and addressing to be achieved.

Recordings are stored in on-chip nonvolatile memory cells, providing zero-power message storage. This unique, single-chip solution is made possible through ISD's patented multilevel storage technology. Voice and audio signals are stored directly into memory in their natural form, providing highquality, solid-state voice reproduction.

ISD2560/75/90/120 DEVICE BLOCK DIAGRAM

ISD2560/75/90/120 DEVICE PINOUTS
