L78M05CDT Power Mosfet Transistor Positive voltage regulators

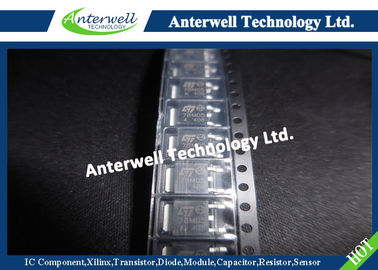

: Large Image : L78M05CDT Power Mosfet Transistor Positive voltage regulators

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	L78M05CDT

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9200pcs

Contact Now

Detailed Product Description

Storage Temperature:	-65 To +150 °C	Operating Junction Temperature:	0 To +150 °C
Output Voltage:	5 V	Quiescent Current:	6 MA
Output Voltage Drift:	-0.5 MV/°C	Output Noise Voltage:	40 µV
Dropout Voltage:	2 V	Short Circuit Current:	300 MA
High Light:	multi emitter transistor , silicon power transistors

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

FDD8447L	5800	FAIRCHILD	15+	SOT252
FDS4925	5800	FAIRCHILD	16+	SOP-8
IRF7319TRPBF	5800	IR	16+	SOP8
LM2940T-9.0	5800	NS	14+	TO220
LM317SX	5800	NS	14+	TO263
NTD20P06LT4G	5800	ON	14+	TO-252
P6SMB6.8A	5800	ON	16+	DO-214
SUD50N024-09	5800	VISHAY	16+	TO252
SN74LVC4245APWR	5811	TI	13+	TSSOP
1N5341B	5812	ON	15+
SI2302ADS-T1-E3	5820	VISHAY	16+	SOT-23
TL082CDRG4 TI 10+	5820	TI	16+	SOP8
IRFB4110PBF	5872	IR	14+	TO-220
HA17903PS	5877	HITACHI	14+	DIP8
MAX232ECSE	5887	MAXIM	14+	SOP16
24LC64-I/SN	5888	MICROCHIP	16+	SOP-8
TS5A3160	5888	TI	16+	SOT23-6
DM7407N	5900	NS	13+	DIP
IPP16CN10NG	5900		15+	TO-220
PIC18F6520-I/PT	5900	MICROCHIP	16+	TQFP
FDC5614P	5911	FAIRCHILD	16+	SOT23-6
BC847B	5922	NXP	14+	SOT-23
LM2596S-3.3	5977	NS	14+	TO-263
LM2678T-ADJ	5999	NS	14+	TO-220
MBR130	5999	ON	16+	SOD123
UC3842BN	5999	ON	16+	DIP-8
2N7002	6000	NXP	13+	SOT-23
2N7002 12W	6000	NXP	15+	SOT-23
2SA1015-GR	6000	TOSHIBA	16+	TO-92
2SB673	6000	TOS	16+	TO-220

L78M00 SERIES

POSITIVE VOLTAGE REGULATORS

■ OUTPUT CURRENT TO 0.5A

■ OUTPUT VOLTAGES OF 5; 6; 8; 9; 12; 15; 18; 20; 24V

■ THERMAL OVERLOAD PROTECTION

■ SHORT CIRCUIT PROTECTION

■ OUTPUT TRANSITION SOA PROTECTION

DESCRIPTION

The L78M00 series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation.

Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter	Value	Unit
V_I	DC Input Voltage (for VO= 5 to 18V) (for VO= 20, 24V)	35 40	V
I_O	Output Current	Internally Limited	mA
P_D	Power Dissipation	Internally Limited	mW
T_stg	Storage Temperature Range	-65 to +150	°C
T_op	Operating Junction Temperature Range	0 to +150	°C
