Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | -55°C To +150°C | Payment Term: | T/T, Paypal, Western Union |
|---|---|---|---|
| Voltage: | 7V | Current: | 800mA |
| Package: | HTSSOP-B24 | Factory Package: | Reel |
| Highlight: | circuit board ic,electronic chip board |
||
A part of stock list
| CAP 0603 150PF 50V CL10C151JB8NNNC | 800000 | SAMSUNG | AC7502D |
| CAP 0603 180PF 50V CL10B181KB8NNNC | 800000 | SAMSUNG | AA20SEE |
| RES 0805 5K9 1% RC0805FR-075K9L | 500000 | YAGEO | 1606 |
| RES 0805 20K5 1% RC0805FR-0720K5 | 500000 | YAGEO | 1606 |
| C.I LNK623PG | 10000 | POWER | 1407 |
| C.I STM32F030K6T6 | 10000 | ST | 1549 |
| DIODO ES1J-E3/61T | 180000 | VISHAY | 1642/EJ |
| CAP 0603 10PF 50V NPO 5% CL10C100JB8NNNC | 400000 | SAMSUNG | CCBET1P |
| DIODO 1N5822 AMMO | 1000000 | MIC | 307260623445 |
| TRANS BF422 | 2000 | TOS | 5F |
| DIODO 1.5KE7.5CA-E3/4 | 5000 | VISHAY | 16+ |
| CONECTOR S3B-PH-SM4-TB(LF)(SN) | 3200 | JST | 15+ |
| CONEC. BM06B-SRSS-TB(LF)(SN) |
3000 | JST | 15+ |
| CONECTOR S4B-PH-SM4-TB(LF)(SN) | 9200 | JST | 2015.11 |
| C.I A2982SLWTR-T | 3100 | ALLEGRO | 1642 |
| OPTOACOPLADOR CNY74-4H | 1000 | VISHAY | V413H68 |
| DIODO S1G-E3/61T | 18000 | VISHAY | 1632/SG |
| CI ADS7866IDBVR | 2500 | TI | A66Y |
| CI MSP430F417IPMR | 2500 | TI | 69A2P1W |
| C.I MC14584BDR2G | 3000 | ON | PAC928 |
| C.I PIC12F508-I/SN | 1000 | MICROCHIP | 1624KC6 |
| C.I LM1117IMPX-3.3/NOPB | 2000 | TI | 4ARD/N05B |
Features
1) MOS FET output(External diode is not necessary.)
2) Output OFF time is determined by external C, R value
3) High efficiency due to synchronous rectifier drive
4) Small and High power package(Exposed PAD)
Aplications
OA Equipment(Printer, Scanner etc...)
Descripations

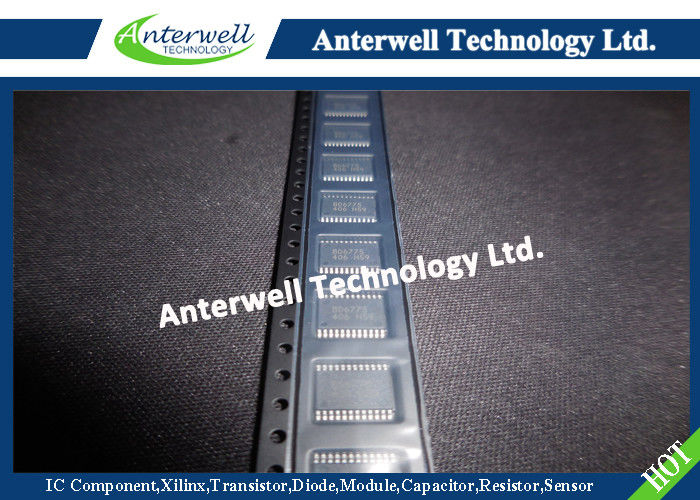

BD6775EFV is a general-purpose stepping motor driver for OA Equipment.
This driver is a bipolar type, available for 2 phase, 1-2 phase, and W1-2 phase motors.
Absolute Maximum Ratings (Ta=25°C)
Supply voltage VCC VCC 7 V
Supply voltage VM VM 40 V
Input voltage VIN VCC V
Power dissipation pd 1.1w
Operating temperature range Topr -20 to +75 °C
Storage temperature range -55 to + 150 °C
Maximum output current Lout 800mA
