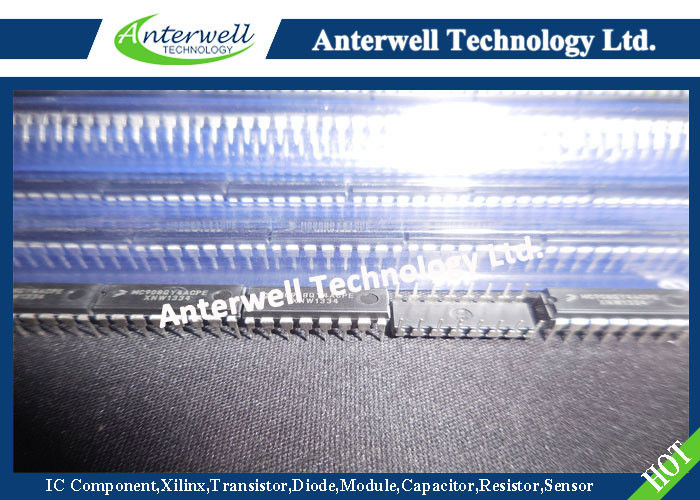

MC908QY4ACPE Electronic IC Chips microchips and integrated circuits



Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

DS1302ZN	30000	DALLAS	16+	SOP8
L7815CV	30000	ST	16+	TO-220
BC807-25LT1G	30000	ON	13+	SOT23
BZX84C33LT1G	30000	ON	15+	SOT-23
MBD914LT1G	30000	ON	16+	SOT23
S1GB-13	30000	DIODES	16+	SMB
TIP122	30000	ST	14+	TO220
TLP131(GB-TPL,F)	30000	TOSHIBA	14+	SOP-
UA741CN	30000	ST	14+	DIP-8
2N7002E	31010	VISHAY	16+	SOT23
W25X40BVSNIG	31250	WINBOND	16+	SOP-8
CD4051BPWR	32000	TI	13+	TSSOP
EMC5754-00VF05GRR	32000	EMP	15+	SOT23-5
RXEF185	32000	RAYCHEM	16+	DIP
SMS7630-079LF	32000	Son/Skywo	16+	SOD-523
74HC139	33211	ST	14+	SOP
1NU41	34500	TOSHIBA	14+	DO15
1N5366BRLG	35000	ON	14+
2SA1943	38000	TOSHIBA	16+	TO-3PL
KIA78L05F	38000	KEC	16+	SOT-89
BZV55-C12	40000	NXP	13+	LL34
MJD122T4G	40000	ON	15+	TO-252
P6KE6.8A	40000	VISHAY	16+	DO-15
ST7FLITE15F1M6	40000	ST	16+	SOP-20
78M05	41000	ST	14+	TO-252
EEEFK1E471P	42000	PANASONIC	14+	SMD
GRM32ER71H475KA88L	42000	MURATA	14+	SMD
MBTA42LT	42000	ON	16+	SOT-23
2SB834-Y	42300	FSC	16+	TO-220
AP89042	42510	APLUS	13+	DIPSOP







MC68HC908QY4A

MC68HC908QT4A

MC68HC908QY2A

MC68HC908QT2A

MC68HC908QY1A

MC68HC908QT1A



M68HC08 Microcontrollers



Introduction

The MC68HC908QY4A is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.



Features

• High-performance M68HC08 CPU core

• Fully upward-compatible object code with M68HC05 Family

• 5-V and 3-V operating voltages (V_DD)

• 8-MHz internal bus operation at 5 V, 4-MHz at 3 V



• Trimmable internal oscillator

  – Software selectable 1 MHz, 2 MHz, or 3.2 MHz internal bus operation

  – 8-bit trim capability

  – ±25% untrimmed

  – Trimmable to approximately 0.4%⁽¹⁾



• Software selectable crystal oscillator range, 32–100 kHz, 1–8 MHz and 8–32 MHz

• Software configurable input clock from either internal or external source

• Auto wakeup from STOP capability using dedicated internal 32-kHz RC or bus clock source



• On-chip in-application programmable FLASH memory

  – Internal program/erase voltage generation

  – Monitor ROM containing user callable program/erase routines

  – FLASH security⁽²⁾



• On-chip random-access memory (RAM)

• 2-channel, 16-bit timer interface (TIM) module

• 6-channel, 10-bit analog-to-digital converter (ADC) with internal bandgap reference channel (ADC10)



• Up to 13 bidirectional input/output (I/O) lines and one input only:

  – Six shared with KBI

  – Six shared with ADC

  – Two shared with TIM

  – One input only shared with IRQ

  – High current sink/source capability on all port pins

  – Selectable pullups on all ports, selectable on an individual bit basis

  – Three-state ability on all port pins



• 6-bit keyboard interrupt with wakeup feature (KBI)

  – Programmable for rising/falling or high/low level detect

• Low-voltage inhibit (LVI) module features:

  – Software selectable trip point



• System protection features:

  – Computer operating properly (COP) watchdog

  – Low-voltage detection with reset

  – Illegal opcode detection with reset

  – Illegal address detection with reset



• External asynchronous interrupt pin with internal pullup (IRQ) shared with general-purpose input pin

• Master asynchronous reset pin with internal pullup (RST) shared with general-purpose input/output

  (I/O) pin

• Memory mapped I/O registers

• Power saving stop and wait modes



• MC68HC908QY4A, MC68HC908QY2A and MC68HC908QY1A are available in these packages:

  – 16-pin plastic dual in-line package (PDIP)

  – 16-pin small outline integrated circuit (SOIC) package

  – 16-pin thin shrink small outline packages (TSSOP)



• MC68HC908QT4A, MC68HC908QT2A and MC68HC908QT1A are available in these packages:

  – 8-pin PDIP

  – 8-pin SOIC

  – 8-pin dual flat no lead (DFN) package



Features of the CPU08 include the following:

• Enhanced HC05 programming model

• Extensive loop control functions

• 16 addressing modes (eight more than the HC05)

• 16-bit index register and stack pointer

• Memory-to-memory data transfers



• Fast 8 × 8 multiply instruction

• Fast 16/8 divide instruction

• Binary-coded decimal (BCD) instructions

• Optimization for controller applications

• Efficient C language support



Absolute Maximum Ratings

Maximum ratings are the extreme limits to which the microcontroller unit (MCU) can be exposed without permanently damaging it.

Characteristic(1)	Symbol	Value	Unit
Supply voltage	VDD	–0.3 to +6.0	V
Input voltage	VIN	VSS –0.3 to VDD +0.3	V
Mode entry voltage, IRQ pin	VTST	VSS –0.3 to +9.1	V
Maximum current per pin excluding PTA0–PTA5, VDD, and VSS	I	±15	mA
Maximum current for pins PTA0–PTA5	IPTA0—IPTA5	±25	mA
Storage temperature	TSTG	–55 to +150	°C
Maximum current out of VSS	IMVSS	100	mA
Maximum current into VDD	IMVDD	100	mA

1. Voltages references to V_SS.



MCU Block Diagram



Figure 1. shows the structure of the MC68HC908QY4A.
