Product Details:
Payment & Shipping Terms:
|
| Collector-Emitter Voltage: | 250 Vdc | Collector-Bsae Voltage: | 250 Vdc |
|---|---|---|---|
| Emitter-Bsae Voltage: | 5.0 Vdc | Bsae Current: | 2.0 Adc |
| Operating Junction Temperature: | -65 To +150 ℃ | Storage Temperature: | -65 To +150 ℃ |
| Highlight: | multi emitter transistor,silicon power transistors |
||
Stock Offer (Hot Sell)
| Part no. | Quantity | Brand | D/C | Package |
| BCX71G | 48000 | FAIRCHILD | 15+ | SOT-23 |
| UC3842 | 49825 | ON | 16+ | DIP-8 |
| 2SA1774TLR | 50000 | ROHM | 16+ | SOT23-3 |
| 2SC3355 | 50000 | NEC | 14+ | TO-92 |
| FDN338P | 50000 | FSC | 14+ | SOT-23 |
| KIA78L08 | 50000 | KEC | 14+ | SOT89 |
| SS13 | 50000 | VISHAY | 16+ | SMA |
| MBT2907ALT1G | 51200 | ON | 16+ | SOT-23 |
| BAV70 | 52000 | NXP | 13+ | SOT23 |
| SK16 | 52000 | MOSPEC | 15+ | SMA |
| UMX1N | 60000 | ROHM | 16+ | SOT363 |
| NJM4558D-#ZZZB | 70000 | JRC | 16+ | DIP8 |
| 2SA1586-GR | 78000 | TOSHIBA | 14+ | SOT-323 |
| SMBJ18A | 88000 | VISHAY | 14+ | DO-214AA |
| UC3842BD1013TR | 90000 | ST | 14+ | SOP8 |
| FR607 | 98000 | MIC | 16+ | R-6 |
| BC857BLT1G | 99000 | ON | 16+ | SOT-23 |
| 78L05 | 100000 | TI | 13+ | TO92 |
| AP8022 | 100000 | CHIPOWN | 15+ | DIP-8 |
| SMBJ12CA | 101000 | VISHAY | 16+ | SMB |
| BC847BLT1G | 117000 | ON | 16+ | SOT-23 |
| BAT54A | 6000 | NXP | 14+ | SOT-23 |
| 2N7002P | 3000 | NXP | 14+ | STO-23 |
| AD9957BSVZ | 2010 | ADI | 14+ | QFP |
| BY500-800 | 2015 | VISHAY | 16+ | DO-201 |
| LM311P | 2020 | TI | 16+ | DIP8 |
| XC5VSX95T-1FFG1136C | 525 | XILINX | 13+ | BGA |
| XC5VSX95T-1FFG1136I | 530 | XILINX | 15+ | BGA |
| AD9958BCPZ | 2035 | AD | 16+ | BGA |
| BD237 | 2040 | NXP | 16+ | DIP |

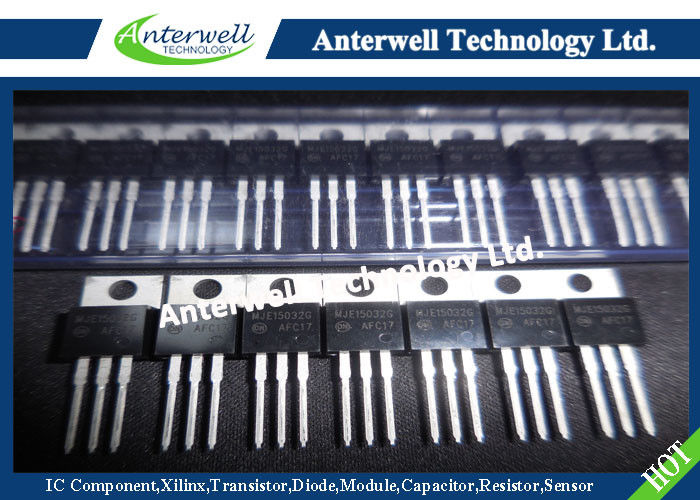

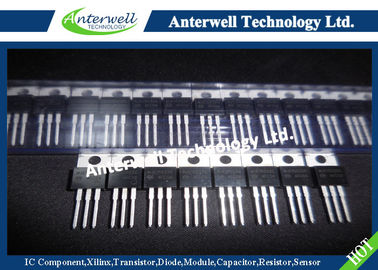

MJE15032 (NPN), MJE15033 (PNP)
Complementary Silicon Plastic Power Transistors
8.0 AMPERES POWER TRANSISTORS COMPLEMENTARY SILICON 250 VOLTS, 50 WATTS
Designed for use as high−frequency drivers in audio amplifiers.
Features
• DC Current Gain Specified to 5.0 Amperes
hFE = 70 (Min) @ IC = 0.5 Adc
= 10 (Min) @ IC = 2.0 Adc
• Collector−Emitter Sustaining Voltage
− VCEO(sus) = 250 Vdc (Min) − MJE15032, MJE15033
• High Current Gain − Bandwidth Product
fT = 30 MHz (Min) @ IC = 500 mAdc
• TO−220AB Compact Package
• Epoxy Meets UL 94 V−0 @ 0.125 in
• ESD Ratings: Machine Model C
Human Body Model 3B
• Pb−Free Packages are Available*
MAXIMUM RATINGS
|
RATING |
SYMBOL |
VALUE |
UNIT |
|
Collector-Emitter Voltage |
VCEO |
250 |
Vdc |
|
Collector-Bsae Voltage |
VCB |
250 |
Vdc |
|
Emitter-Bsae Voltage |
VEB |
5.0 |
Vdc |
|
Collector Current -Continuous -Peak |
IC |
8.0 16 |
Adc |
|
Bsae Current |
IB |
2.0 |
Adc |
|
Total Power Dissipation @TC=25℃ Derate above 25℃ |
PD |
50 0.40 |
W W/℃ |
|
Total Power Dissipation @TA=25℃ Derate above 25℃ |
PD |
2.0 0.016 |
W W/℃ |
|
Storage and Operating Junction Temperature Range |
TJ, TSTG |
-65 to +150 |
℃ |
PACKAGE DIMENSIONS
TO−220
CASE 221A−09
ISSUE AA
