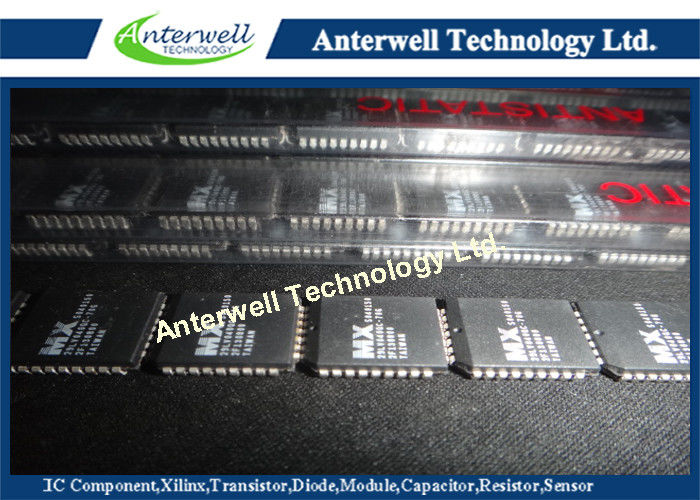

MX29LV040QC-70G Programmable IC Chips Integrated Circuits IC Component



Stock List

FEATURES
• Extended single - supply voltage range 2.7V to 3.6V
• 524,288 x 8 only
• Single power supply operation - 3.0V only operation for read, erase and program operation
• Fast access time: 55R/70/90ns

• Low power consumption
- 20mA maximum active current
- 0.2uA typical standby current

• Command register architecture
- 8 equal sector of 64K-Byte each
- Byte Programming (9us typical)
- Sector Erase (Sector structure 64K-Byte x8)

• Auto Erase (chip & sector) and Auto Program
- Automatically erase any combination of sectors with Erase Suspend capability.
- Automatically program and verify data at specified address

• Erase suspend/Erase Resume
- Suspends sector erase operation to read data from, or program data to,
any sector that is not being erased, then resumes the erase.

• Status Reply - Data polling & Toggle bit for detection of program and erase operation completion.
• Sector protection
- Hardware method to disable any combination of sectors from program or erase operations
- Any combination of sectors can be erased with erase suspend/resume function.
- Tempoary sector unprotect allows code changes in previously locked sectors.

• 100,000 minimum erase/program cycles
• Latch-up protected to 100mA from -1V to VCC+1V
• Low VCC write inhibit is equal to or less than 2.3V
• Package type: - 32-pin PLCC - 32-pin TSOP
• Compatibility with JEDEC standard
- Pinout and software compatible with single-power supply Flash

PIN CONFIGURATIONS
32 TSOP (Standard Type) (8mm x 20mm) 32 PLCC
