SB540A-E3/73 Rectifier Diode Schottky Barrier Rectifier High Frequency Operation

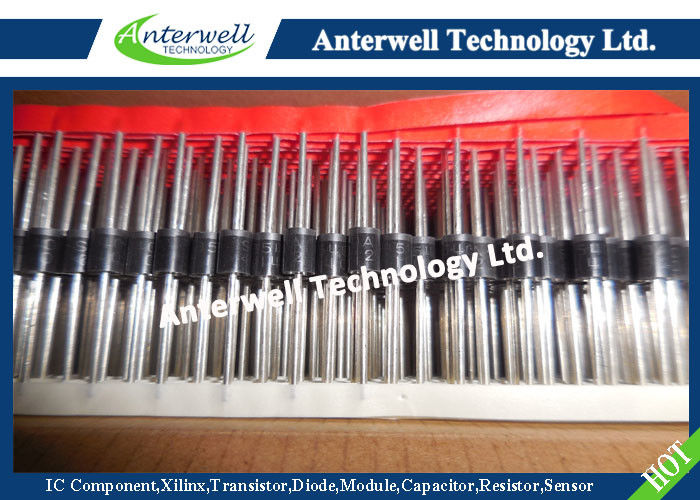

Large Image : SB540A-E3/73 Rectifier Diode Schottky Barrier Rectifier High Frequency Operation

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SB540A-E3/73

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	12000pcs

Contact Now

Detailed Product Description

Maximum Average Forward Rectified Current:	5.0 A	Maximum Repetitive Peak Reverse Voltage:	20 V To 60 V
Peak Forward Surge Current, 8.3 Ms Single Half Sinewave Superimposed On Rated Load:	150 A	VF:	0.50 V, 0.70 V
Operating Junction Temperature:	- 65 To + 150 °C	Storage Temperature:	- 65 To + 150 °C
Highlight:	bridge rectifier circuit , signal schottky diode

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

D9258PH	4082	CHMC	15+	HSOP-28
PCA82C200T	4074	PHI	16+	SOP28
2SK2700	4066	TOSHIBA	16+	TO-220F
ADF4360-3BCPZ	4058	AD	14+	LFCSP
DS26C31MJ/883	4050	NS	14+	DIP
LP311DR	4042	TI	14+	SOP-8
PIC16F877A-I/L	4034	MICROCHIP	16+	PLCC
CLC007AJE	4026	NS	16+	SOP-8
HGTG20N60B3	4018	FSC	13+	TO-247
ADS8321EB	4010	TI	15+	SSOP
PIC18F252-I/SP	4002	MICROCHIP	16+	DIP
SPP11N80C3	3994	INF	16+	TO-220
MCIMX535DVV1C	3986	FREESCALE	14+	BGA
BLF242	3978	PHILIPS	14+	TO-59
AD1882JCPZ	3970	AD	14+	QFN
AT24C64A-10PU-2.7	3962	ATMEL	16+	DIP
BTA25-600B	3954	ST	16+	RD91
GBPC3512A	3946	IR	13+
IRFSL23N20D	3938	IR	15+	TO-262
LM6171BIN	3930	NS	16+	DIP8
M27C256B-15F1	3922	ST	16+	DIP
M27C4001-45XF1	3914	ST	14+	DIP
M27C512-10F1	3906	ST	14+	DIP
M35080MN6	3898	ST	14+	SOP-8
MAX232ACWE	3890	MAXIM	16+	SOP
MAX3443EASA	3882	MAXIM	16+	SOP8
MC12017D	3874	ON	13+	SOP8
PH1819-60	3866	PHI	15+	TO-63
PIC16C57C-04/P	3858	MICROCHIP	16+	DIP-28
PIC16F627A-I/SO	3850	MICROCHIP	16+	SOP18

SB520A thru SB560A

Vishay General Semiconductor

Schottky Barrier Rectifier

FEATURES

• Guardring for overvoltage protection

• Very small conduction losses

• Extremely fast switching

• Low forward voltage drop

• High frequency operation

• Solder dip 260 °C, 40 s

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.

MECHANICAL DATA

Case: DO-201AD

Epoxy meets UL 94V-0 flammability rating

Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class 1A whisker test

Polarity: Color band denotes the cathode end

MAXIMUM RATINGS (T_A = 25 °C unless otherwise noted)

PARAMETER	SYMBOL	SB520A	SB530A	SB540A	SB550A	SB560A	UNIT
Maximum repetitive peak reverse voltage	V_RRM	20	30	40	50	60	V
Maximum RMS voltage	V_RMS	14	21	28	35	42	V
Maximum DC blocking voltage	V_DC	20	30	40	50	60	V
Maximum average forward rectified current 0.375" (9.5 mm) lead length (Fig. 1)	I_F(AV)	5.0					A
Peak forward surge current, 8.3 ms single half sinewave superimposed on rated load	I_FSM	150					A
Operating junction temperature range	T_J	- 65 to + 150					°C
Storage temperature range	T_STG	- 65 to + 150					°C
