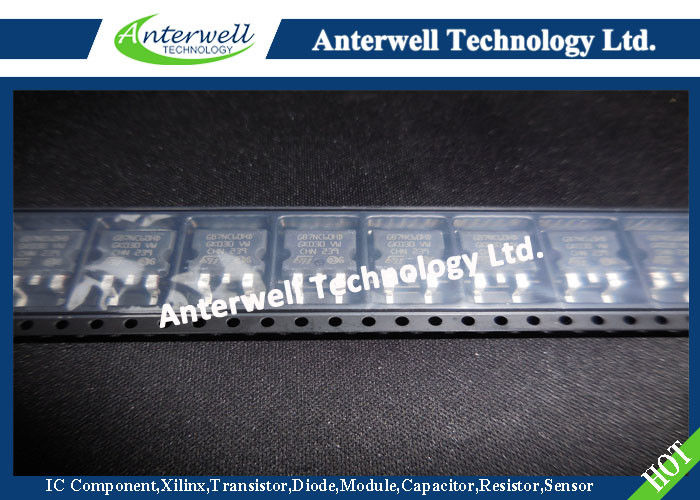

STGB7NC60HDT4 Power Mosfet Transistor Very Fast Power MESH IGBT

: Large Image : STGB7NC60HDT4 Power Mosfet Transistor Very Fast Power MESH IGBT

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	STGB7NC60HDT4

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7800pcs

Contact Now

Detailed Product Description

Collector-Emitter Voltage:	600 V	Emitter-Collector Voltage:	20 V
Gate-Emitter Voltage:	±20 V	Collector Current (pulsed):	50 A
Diode RMS Forward Current At TC = 25°C:	20 A	Storage Temperature:	– 55 To 150 °C
Operating Junction Temperature:	– 55 To 150 °C	Total Dissipation At TC = 25°C:	80 W
Highlight:	power mosfet ic , multi emitter transistor
