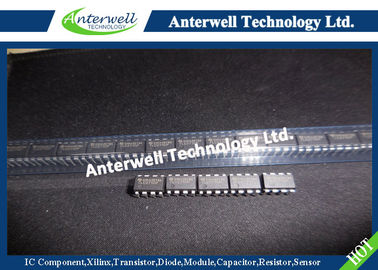

Low Noise TLC271CP amplifier Programmable IC Chips 18 V Supply voltage

Stock Offer (Hot Sell)

TLC271, TLC271A, TLC271B

LinCMOS^TM PROGRAMMABLE LOW-POWER OPERATIONAL AMPLIFIERS

• Input Offset Voltage Drift ...Typically 0.1 µV/Month, Including the First 30 Days

• Wide Range of Supply Voltages Over Specified Temperature Range:
  • 0°C to 70°C . . . 3 V to 16 V
  • –40°C to 85°C . . . 4 V to 16 V
  • –55°C to 125°C . . . 5 V to 16 V

• Single-Supply Operation

• Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix and I-Suffix Types)


• Low Noise . . . 25 nV/√Hz Typically at f = 1 kHz (High-Bias Mode)

• Output Voltage Range includes Negative Rail

• High Input Impedance . . . 10¹² Ω Typ

• ESD-Protection Circuitry

• Small-Outline Package Option Also Available in Tape and Reel

• Designed-In Latch-Up Immunity

description

The TLC271 operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift and high input impedance. In addition, the TLC271 offers a bias-select mode that allows the user to select the best combination of power dissipation and ac performance for a particular application. These devices use Texas Instruments silicon-gate LinCMOS^TM technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.

Using the bias-select option, these cost-effective devices can be programmed to span a wide range of applications that previously required BiFET, NFET or bipolar technology. Three offset voltage grades are available (C-suffix and I-suffix types), ranging from the low-cost TLC271 (10 mV) to the TLC271B (2 mV) low-offset version. The extremely high input impedance and low bias currents, in conjunction with good common-mode rejection and supply voltage rejection, make these devices a good choice for new state-of-the-art designs as well as for upgrading existing designs.

In general, many features associated with bipolar technology are available in LinCMOS^TM operational amplifiers, without the power penalties of bipolar technology. General applications such as transducer interfacing, analog calculations, amplifier blocks, active filters, and signal buffering are all easily designed with the TLC271. The devices also exhibit low-voltage single-supply operation, making them ideally suited for remote and inaccessible battery-powered applications. The common-mode input voltage range includes the negative rail.

A wide range of packaging options is available, including small-outline and chip-carrier versions for high-density system applications.

The device inputs and output are designed to withstand –100-mA surge currents without sustaining latch-up.

The TLC271 incorporates internal ESD-protection circuits that prevent functional failures at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.2; however, care should be exercised in handling these devices as exposure to ESD may result in the degradation of the device parametric performance.

The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from – 40°C to 85°C. The M-suffix devices are characterized for operation over the full military temperature range of – 55°C to 125°C.

absolute maximum ratings over operating free-air temperature (unless otherwise noted)†

Supply voltage, V_DD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V

Differential input voltage, V_ID (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±V_DD

Input voltage range, V_I (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – 0.3 V to V_DD

Input current, I_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mA

Output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 mA

Duration of short-circuit current at (or below) 25°C (see Note 3)  . . . . . . . . . . . . . . . . . . . . . . Unlimited

Operating free-air temperature, T_A: C suffix  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C

                                                         I suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  – 40°C to 85°C

                                                         M suffix  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  – 55°C to 125°C

Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  – 65°C to 150°C

Case temperature for 60 seconds: FK package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  260°C

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package  . . . . . . . . . . . . 260°C Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package  . . . . . . . . . . . . . . . 300°C

† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES:

1. All voltage values, except differential voltages, are with respect to network ground.

2. Differential voltages are at IN+ with respect to IN–.

3. The output may be shorted to either supply. Temperature and/or supply voltages must be limited to ensure that the maximum dissipation rating is not exceeded (see application section).
