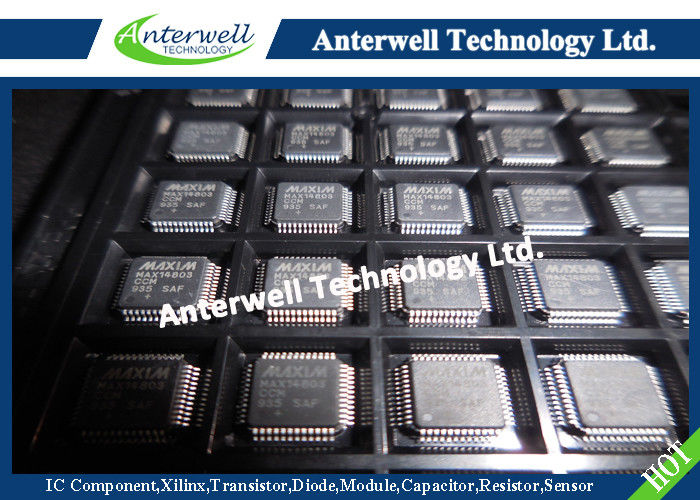

MAX14803CCM Flash programmable ic Integrated circuit Chip 200A Current

Low-Charge Injection, 16-Channel, High-Voltage Analog Switches

FEATURES SUMMARY

♦ Integrated Overvoltage Protection (MAX14802/ MAX14803)

♦ 20MHz Serial Interface (5V)

♦ HVCMOS Technology for High Performance

♦ Individually Programmable High-Voltage Analog Switches

♦ Very Low 5µA (typ) Quiescent Current

♦ DC-to-20MHz Low-Voltage Analog Signal Frequency Range

♦ 2.7V to 5.5V Logic Supply Voltage

♦ Low-Charge Injection, Low-Capacitance RL Switches

♦ -77dB (typ) Off-Isolation at 5MHz (RL = 50Ω)

♦ Daisy-Chainable Serial Interface

♦ Flexible High-Voltage Supplies (VPP - VNN = 250V)

A part  of stock list

ABSOLUTE MAXIMUM RATINGS

(All voltages referenced to GND.) VDD Logic-Supply Voltage .......................................-0.3V to +7V

VPP - VNN Supply Voltage ....................................................260V

VPP Positive-Supply Voltage.................................-0.3V to +220V

VNN Negative-Supply Voltage ...............................-0.3V to -220V

Logic Inputs (LE, CLR, CLK, DIN, DOUT)................-0.3V to +7V

COM_, NO_ (MAX14800/MAX14801) ...........(-0.3V + VNN) to (VNN + 200V) COM_, NO_ (MAX14802/MAX14803).........(-0.3V + VNN) to the minimum of [(VNN + 200V) or (VPP + 0.3V)] Peak Analog Signal Current Per Channel................................3A

Continuous Power Dissipation (TA = +70°C) 48-Pin TQFP

(derate 22.7mW/°C above +70°C).........1818mW

Junction-to-Ambient Thermal Resistance (θJA) (Note 1)

48-Pin TQFP ..................................................................44°C/W

Junction-to-Case Thermal Resistance (θJC) (Note 1)

48-Pin TQFP ..................................................................10°C/W

Operating Temperature Range...............................0°C to +70°C

Storage Temperature Range .............................-65°C to +150°C

Junction Temperature..................................................... +150°C

Lead Temperature (soldering, 10s) .................................+300°C
