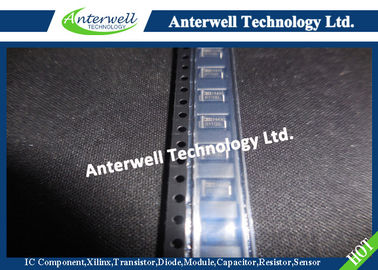

B1100 Rectifier Diode HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

: Large Image : B1100 Rectifier Diode HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	B1100

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9200pcs

Contact Now

Detailed Product Description

Peak Repetitive Reverse Voltage:	100 V	Working Peak Reverse Voltage:	100 V
DC Blocking Voltage:	100 V	RMS Reverse Voltage:	70 V
Typical Thermal Resistance Junction To Terminal:	25 °C/W	Operating And Storage Temperature:	-65 To +150 °C
Highlight:	diode rectifier circuit , signal schottky diode

Stock Offer (Hot Sell)

Part No.

Quantity

Brand

D/C

Package

HD74LS139P	6181	RENESAS	11+	DIP
HD74LS240P	5282	RENESAS	14+	DIP-20
HD74LS245P	9670	RENESAS	16+	DIP
HD74LS273P	5485	HITACHI	13+	DIP-20
HD74LS32P-E	11345	RENESAS	16+	DIP-14
HD74LS85P	8284	RENESAS	14+	DIP
HD74LS86P	12694	RENESAS	14+	DIP-14
HDSP-F201-DE000	2694	AVAGO	12+	DIP
HEF4001BT	25000	NXP	16+	SOP-14
HEF40106BT	47000	NXP	13+	SOP
HEF4011BT	48000	NXP	16+	SOP-14
HEF4013BP	15250	NXP	94+	DIP-14
HEF4016BT	89000	NXP	16+	SOP-15
HEF4017BT	35000	NXP	16+	SOP-16
HEF4051BP	9941	NXP	12+	DIP-16
HEF4071BP	21072	NXP	12+	DIP
HEF4071BT	98000	NXP	16+	SOP-14
HEF4094BP	15321	NXP	10+	DIP-16
HEF4538BT	14627	NXP	16+	SOP-16
HFA08TB60PBF	11416	VISHAY	15+	TO-220
HFBR-1312TZ	499	AVAGO	15+	ORIGINAL
HFBR-1414TZ	2747	AVAGO	16+	ZIP
HFBR-1521Z	2381	AVAGO	15+	ZIP
HFBR-2316TZ	472	AVAGO	15+	DIP
HFBR-2521Z	2432	AVAGO	15+	ZIP
HFJ11-1G11E-L12RL	6864	HALO	14+	RJ45
HGDEPT031A	5862	ALPS	09+	SOT23PB
HGTG20N60A4D	8766	FSC	14+	TO-247
HI1-5043-5	2403	HARRIS	01+	DIP-16
HIH-4000-004	1201	HONEYWELL	15+	SENSOR

B170/B - B1100/B

1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Features

• Guard Ring Die Construction for Transient Protection

• Ideally Suited for Automated Assembly

• Low Power Loss, High Efficiency

• Surge Overload Rating to 30A Peak

• For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application

• High Temperature Soldering: 260°C/10 Second at Terminal • Lead Free Finish/RoHS Compliant (Note 1)

• Green Molding Compound (No Halogen and Antimony) (Note 2)

Mechanical Data

• Case: SMA / SMB

• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208

• Polarity: Cathode Band or Cathode Notch

• Weight: SMA 0.064 grams (approximate) SMB 0.093 grams (approximate)

Maximum Ratings @TA = 25°C unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitance load, derate current by 20%.

Characteristic	Symbol	B170/B	B180/B	B190/B	B1100/B	Unit
Peak Repetitive Reverse Voltage	V_RRM	70	80	90	100	V
Working Peak Reverse Voltage	V_RWM	70	80	90	100	V
DC Blocking Voltage	V_R	70	80	90	100	V
RMS Reverse Voltage	V_R(RMS)	49	56	63	70	V
Average Rectified Output Current @ T_T = 125°C	I_O	1.0				A
Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load	I_FSM	30				A
Repetitive Peak Reverse Current	I_RRM	1.0				A
