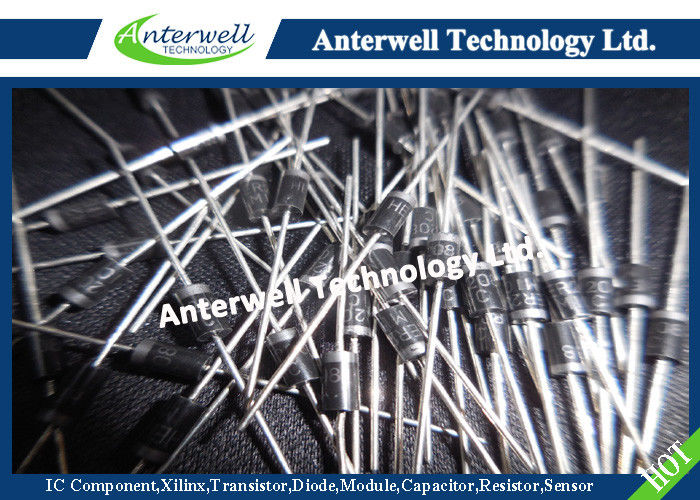

HER208 Rectifier Diode High Efficiency Rectifiers ULTRA FAST DIODE

: Large Image : HER208 Rectifier Diode High Efficiency Rectifiers ULTRA FAST DIODE

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	HER208

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7800pcs

Contact Now

Detailed Product Description

Peak Repetitive Reverse Voltage:	1000 V	Working Peak Reverse Voltage:	1000 V
DC Blocking Voltage:	1000 V	RMS Reverse Voltage:	700 V
Average Rectified Output Current:	2.0 A	Peak Reverse Current:	5.0 µA
Operating Temperature:	-65 To +125 °C	Storage Temperature:	-65 To +150 °C
Highlight:	diode rectifier circuit , bridge rectifier circuit

Stock Offer (Hot Sell)

Part No.

Quantity

Brand

D/C

Package

INN8186	14106	INNO	15+	SOP-8
IP4220CZ6	95000	NXP	14+	SOT23-6
IPD60R750E6	6123		16+	TO-252
IPS022GTR	6326	IR	04+	SOP-8
IPS7071GPBF	6823	IR	12+	SOP-8
IR2103STRPBF	4102	IR	15+	SOP-8
IR2110PBF	12615	IR	16+	DIP-14
IR2110STRPBF	11621	IR	15+	SOP-16
IR2111PBF	2178	IR	07+	DIP-8
IR2112PBF	8355	IR	08+	DIP-14
IR2113PBF	4677	IR	15+	DIP-14
IR2113STRPBF	12544	IR	15+	SOIC-16
IR2118PBF	14177	IR	16+	DIP-8
IR2118S	6075	IR	14+	SOP-8
IR2153PBF	6146	IR	16+	DIP-8
IR21814STRPBF	5286	IR	16+	SOP-14
IR2233J	2249	IR	15+	PLCC32
IR3566BMTRPBF	3860	IR	16+	QFN48
IR3570BMTRPBF	3411	IR	14+	QFN
IR3585BMSY01TRPBF	3549	IR	13+	QFN48
IR4427PBF	14248	IR	13+	DIP-8
IR4427STRPBF	6248	IR	14+	SOP-8
IRF1010N	3464	IR	14+	TO-220
IRF1404STRLPBF	4764	IR	16+	TO-263
IRF1404ZPBF	9554	IR	16+	TO-220
IRF2807PBF	6558	IR	15+	TO-220
IRF2907Z	2320	IR	11+	TO-220
IRF2907ZPBF	4500	IR	12+	TO-220
IRF3205PBF	8079	IR	16+	TO-220
IRF3205ZSTRLPBF	6857	IR	14+	TO-263

HER201 – HER208

2.0A ULTRAFAST DIODE

Features

Diffused Junction
Low Forward Voltage Drop
High Current Capability
High Reliability
High Surge Current Capability

Mechanical Data

Case: DO-15, Molded Plastic
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.40 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version

Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic	Symbol	HER 201	HER 202	HER 203	HER 204	HER 205	HER 206	HER 207	HER 208	Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	V_RRM V_RWM V_R	50	100	200	300	400	600	800	1000	V
RMS Reverse Voltage	V_R(RMS)	35	70	140	210	280	420	560	700	V
Average Rectified Output Current (Note 1) @TA = 55°C	I_O	2.0								A
Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method)	I_FSM	60								A
Forward Voltage @I_F = 2.0A	V_FM	1.0				1.3	1.7			V
Peak Reverse Current @T_A = 25°C At Rated DC Blocking Voltage @T_A = 100°C	I_RM	5.0 100								µA
Reverse Recovery Time (Note 2)	t_rr	50					75			nS
Typical Junction Capacitance (Note 3)	Cj	60					40			pF
Operating Temperature Range	Tj	-65 to +125								°C
Storage Temperature Range	T_STG	-65 to +150								°C

Note:

1. Leads maintained at ambient temperature at a distance of 9.5mm from the case

2. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. See figure 5.

3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
