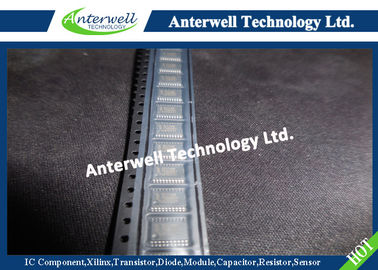

TDA1517AW 8 W BTL or 2 x 4 W SE power amplifier 12v led circuit board , printed circuit board

TDA1517AW 8 W BTL or 2 x 4 W SE power amplifier 12v led circuit board printed circuit board

FEATURES

• Requires very few external components

• Flexibility in use: mono Bridge-Tied Load (BTL) and stereo Single-Ended (SE);

it should be noted that in stereo applications the outputs of both amplifiers are in opposite phase

• High output power

• Low offset voltage at output (important for BTL)

• Fixed gain

• Good ripple rejection

• Mode select switch (operating, mute and standby)

• AC and DC short-circuit safe to ground and VP

GENERAL DESCRIPTION

The TDA1517ATW is an integrated class-AB output amplifier contained in a plastic heatsink thin shrink small outline package (HTSSOP20). The device is primarily developed for multimedia applications.
