2SD1113 3 Pin Transistor Silicon NPN Triple Diffused power transistor

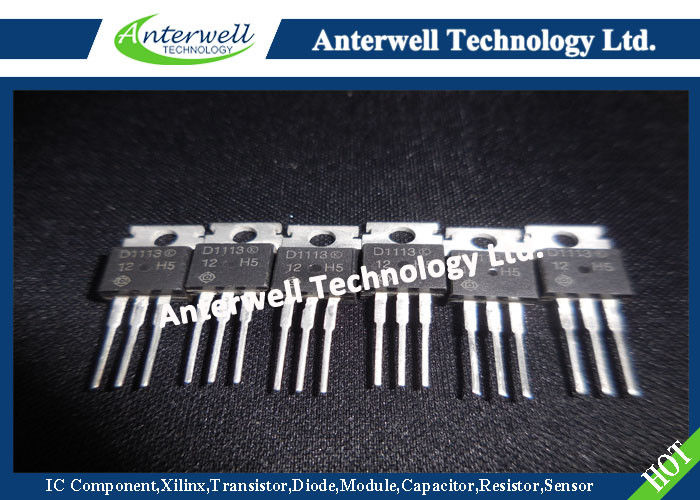

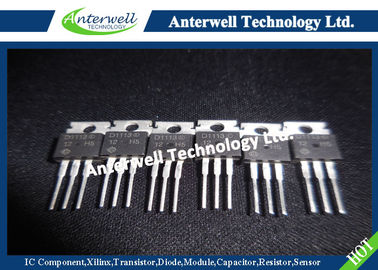

: Large Image : 2SD1113 3 Pin Transistor Silicon NPN Triple Diffused power transistor

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SD1113

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7800pcs

Contact Now

Detailed Product Description

Collector To Base Voltage:	300 V	Collector To Emitter Voltage:	300 V
Emitter To Base Voltage:	7 V	Collector Current:	6 A
Collector Peak Current:	10 A	Collector Power Dissipation:	40 W
Junction Temperature:	150 °C	Storage Temperature:	–55 To +150 °C
Highlight:	multi emitter transistor , silicon power transistors

2SD1113(K) Silicon NPN Triple Diffused

Application

Igniter

Absolute Maximum Ratings (Ta = 25°C)

Item	Symbol	Ratings	Unit
Collector to base voltage	V_CBO	300	V
Collector to emitter voltage	V_CEO	300	V
Emitter to base voltage	V_EBO	7	V
Collector current	I_C	6	A
Collector peak current	I_C(peak)	10	A
Collector power dissipation	P_C^*1	40	W
Junction temperature	T_j	150	°C
Storage temperature	T_stg	–55 to +150	°C

Outline

2SD1113 3 Pin Transistor Silicon NPN Triple Diffused power transistor
