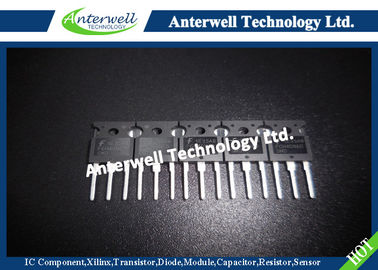

FGH40N60SMD Mosfet Power Module st power mosfet IGBT Power Module

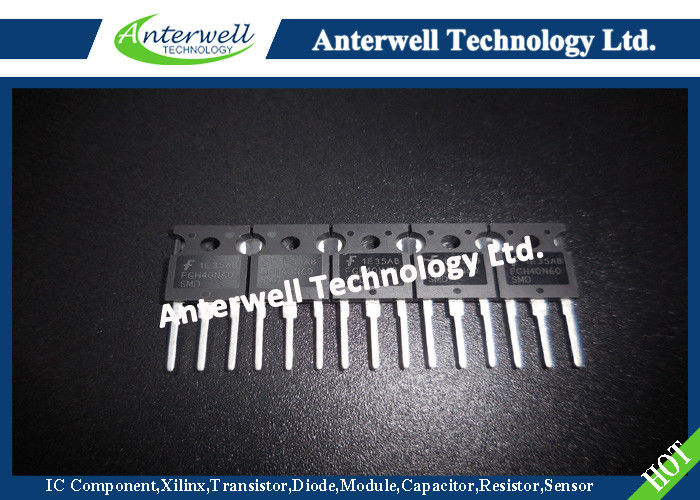

: Large Image : FGH40N60SMD Mosfet Power Module st power mosfet IGBT Power Module

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	FGH40N60SMD

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8500pcs

Contact Now

Detailed Product Description

Collector To Emitter Voltage:	600 V	Gate To Emitter Voltage:	± 20 V
Pulsed Collector Current:	120 A	Pulsed Diode Maximum Forward Current:	120 A
Operating Junction Temperature:	-55 To +175℃	Storage Temperature:	-55 To +175℃
Highlight:	thyristor diode module , low voltage power mosfet

FGH40N60SMDF

600V, 40A Field Stop IGBT

Features

• Maximum Junction Temperature : T_J =175℃

• Positive Temperaure Co-efficient for easy parallel operating

• High current capability

• Low saturation voltage: V_CE(sat) =1.9V(Typ.) @ I_C = 40A

• High input impedance

• Fast switching

• Tighten Parameter Distribution

• RoHS compliant

Applications

• Solar Inverter, UPS, SMPS, PFC

• Induction Heating

General Description

Using Novel Field Stop IGBT Technology, Fairchild’s new series of Field Stop IGBTs offer the optimum performance for Solar Inverter, UPS, SMPS, IH and PFC applications where low conduction and switching losses are essential.

Absolute Maximum Ratings

Symbol	Description	Ratings	Units
V_CES	Collector to Emitter Voltage	600	V
V_GES	Gate to Emitter Voltage	± 20	V
I_C	Collector Current @ T_C = 25℃	80	A
I_C	Collector Current @ T_C = 100℃	40	A
I_{CM (1)}	Pulsed Collector Current	120	A
I_F	Diode Forward Current @ T_C = 25℃	40	A
I_F	Diode Forward Current @ T_C= 100℃	20	A
I_{FM (1)}	Pulsed Diode Maximum Forward Current	120	A
P_D	Maximum Power Dissipation @ T_C = 25℃	349	W
P_D	Maximum Power Dissipation @ T_C = 100℃	174	W
T_J	Operating Junction Temperature	-55 to +175	℃
Tstg	Storage Temperature Range	-55 to +175	℃
T_L	Maximum Lead Temp. for soldering Purposes, 1/8” from case for 5 seconds	300	℃

Notes: 1: Repetitive rating: Pulse width limited by max. junction temperature.
