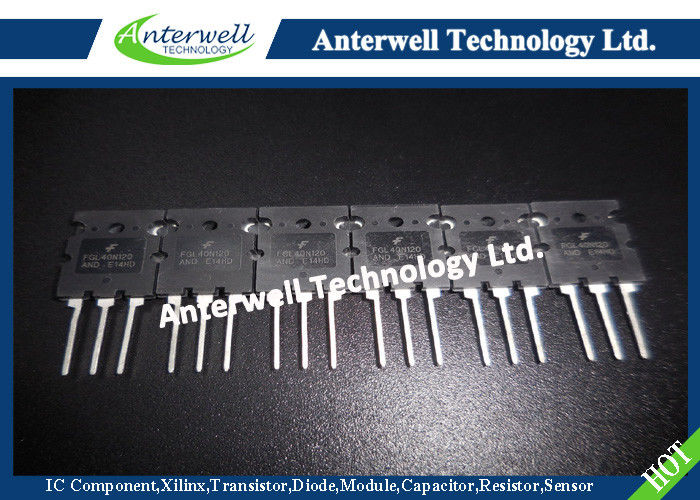

FGL40N120AND Mosfet Power Module complementary silicon power transistors

: Large Image : FGL40N120AND Mosfet Power Module complementary silicon power transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	FGL40N120AND

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8500pcs

Contact Now

Detailed Product Description

Collector-Emitter Voltage:	1200 V	Gate-Emitter Voltage:	±25 V
Pulsed Collector Current:	120 A	Diode Maximum Forward Current:	240 A
Operating Junction Temperature:	-55 To +150 °C	Storage Temperature:	-55 To +150 °C
Highlight:	low voltage power mosfet , hybrid inverter circuit

FGL40N120AND

1200V NPT IGBT

Features

• High speed switching

• Low saturation voltage : V_CE(sat)= 2.6 V @ I_C = 40A

• High input impedance

• CO-PAK, IGBT with FRD : t_rr = 75ns (typ.)

Applications

Induction Heating, UPS, AC & DC motor controls and general purpose inverters.

Description

Employing NPT technology, Fairchild’s AND series of IGBTs provides low conduction and switching losses. The AND series offers an solution for application such as induction heating (IH), motor control, general purpose inverters and uninterruptible power supplies (UPS).

Absolute Maximum Ratings

Symbol	Parameter	FGL40N120AND	Units
V_CES	Collector-Emitter Voltage	1200	V
V_GES	Gate-Emitter Voltage	±25	V
I_C	Collector Current @T_C = 25°C	64	A
I_C	Collector Current @T_C = 100°C	40	A
I_CM(1)	Pulsed Collector Current	120	A
I_F	Diode Continuous Forward Current @T_C = 100°C	40	A
I_FM	Diode Maximum Forward Current	240	A
P_D	Maximum Power Dissipation @T_C = 25°C	500	W
P_D	Maximum Power Dissipation @T_C = 100°C	200	W
SCWT	Short Circuit Withstand Time, V_CE = 600V, V_GE = 15V, T_C = 125°C	10	µs
T_J	Operating Junction Temperature	-55 to +150	°C
T_STG	Storage Temperature Range	-55 to +150	°C
T_L	Maximum Lead Temp. for Soldering Purposes, 1/8” from Case for 5 seconds	300	°C

Notes: (1) Pulse width limited by max. junction temperature
